(90.118.AE[01]) - LADDER ASSEMBLY, LEFT FRONT, 3040, 3540

Запчасти Case IH TITAN 3040 (90.118.AE[01]) - LADDER ASSEMBLY, LEFT FRONT, 3040, 3540 (90) - PLATFORM, CAB, BODYWORK AND DECALS

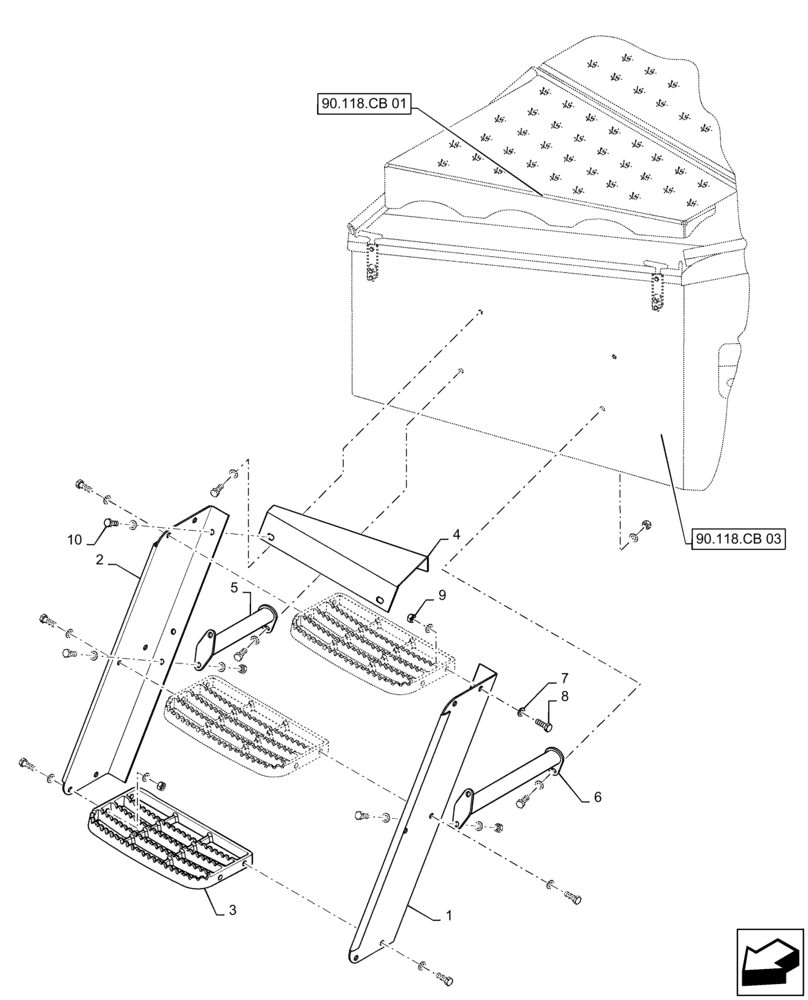

Схема запчастей Case IH TITAN 3040 - (90.118.AE[01]) - LADDER ASSEMBLY, LEFT FRONT, 3040, 3540 (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
7
5
1
90.118.cb 03
6
4
3
9
10
2
90.118.cb 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

344273A1

SUPPORT

Outer Ladder Rail

1шт.

2

344274A1

SUPPORT

Inner Ladder Rail

1шт.

3

87270245

STEP

3шт.

4

344272A1

BRACKET, SUPPORTING

Ladder

1шт.

5

344277A1

SUPPORT

Inner, Ladder

1шт.

6

344278A1

SUPPORT

Outer, Ladder

1шт.

7

BN50146

WASHER,3/8", Stainless

42шт.

8

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

12шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

20шт.

10

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

10шт.

Выбрано товаров: 10
