Запчасти Case IH TITAN 3040 (90.116.AG [01]) - MUDFLAP GROUP, REAR OF REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

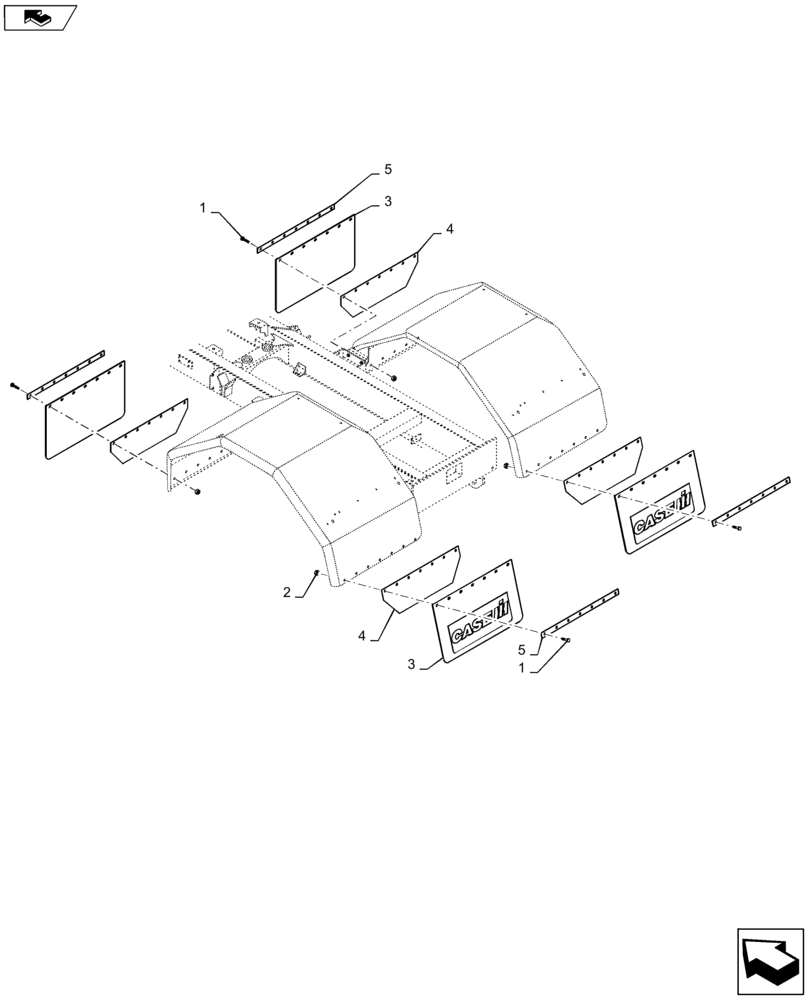

Схема запчастей Case IH TITAN 3040 - (90.116.AG [01]) - MUDFLAP GROUP, REAR OF REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
5
2
3
1
1
4
5
4
home

Артикул

Название

Примечание

Количество

1

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

14шт.

2

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

14шт.

3

87668024

MUDFLAP

24 X 40, CASE

2шт.

4

BN320351

SUPPORT

MUD FLAP, POLY

2шт.

5

BN320352

STIFFENER

MUD FLAP, POLY

2шт.

Выбрано товаров: 5
