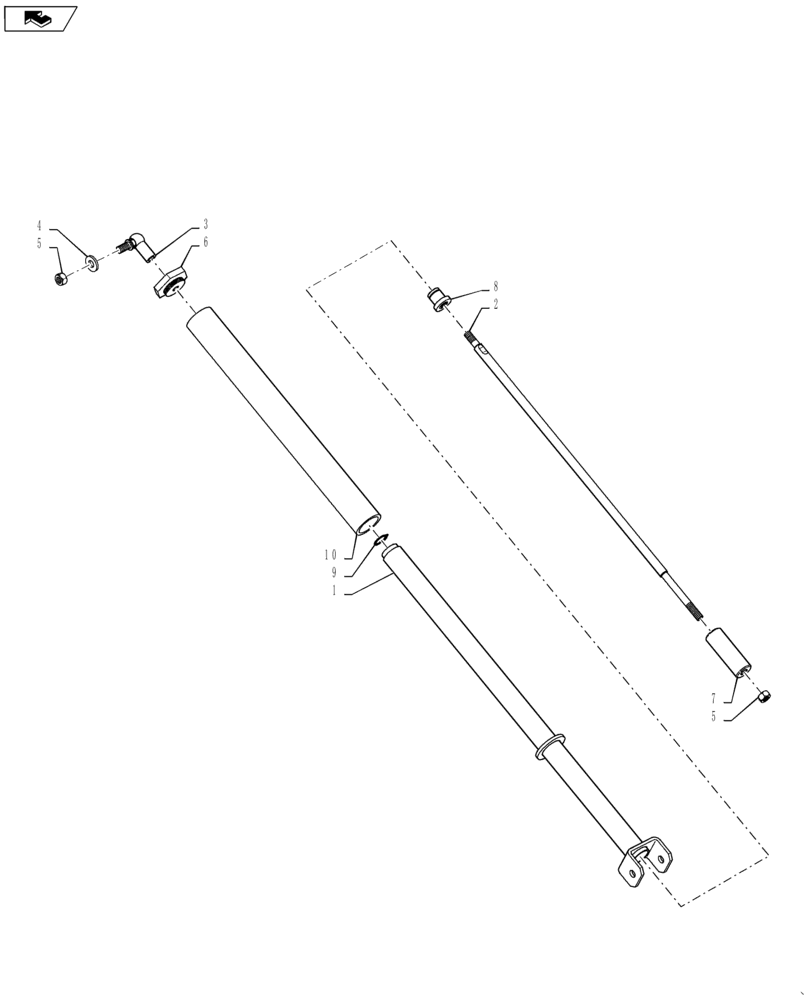

Запчасти Case IH TITAN 3040 (90.102.AE[02]) - HOOD LIFT CYLINDER, 3040, 3540 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

342843A1

HYD TUBE,618 mm Length

Assembly, Lift Cylinder

1шт.

2

87266703

PISTON ROD

Lift Cylinder

1шт.

3

3222844R1

BALL JOINT

1шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

6

87266698

RING NUT

Spring Seat

1шт.

7

342841A1

PISTON ROD

Lift Cylinder

1шт.

8

87266697

BUSHING

Piston Stop

1шт.

9

100-1175

SNAP RING,#75, Ext

1шт.

10

342447A1

SPRING

Compression, 44.5 x 4.7 x 914

1шт.
