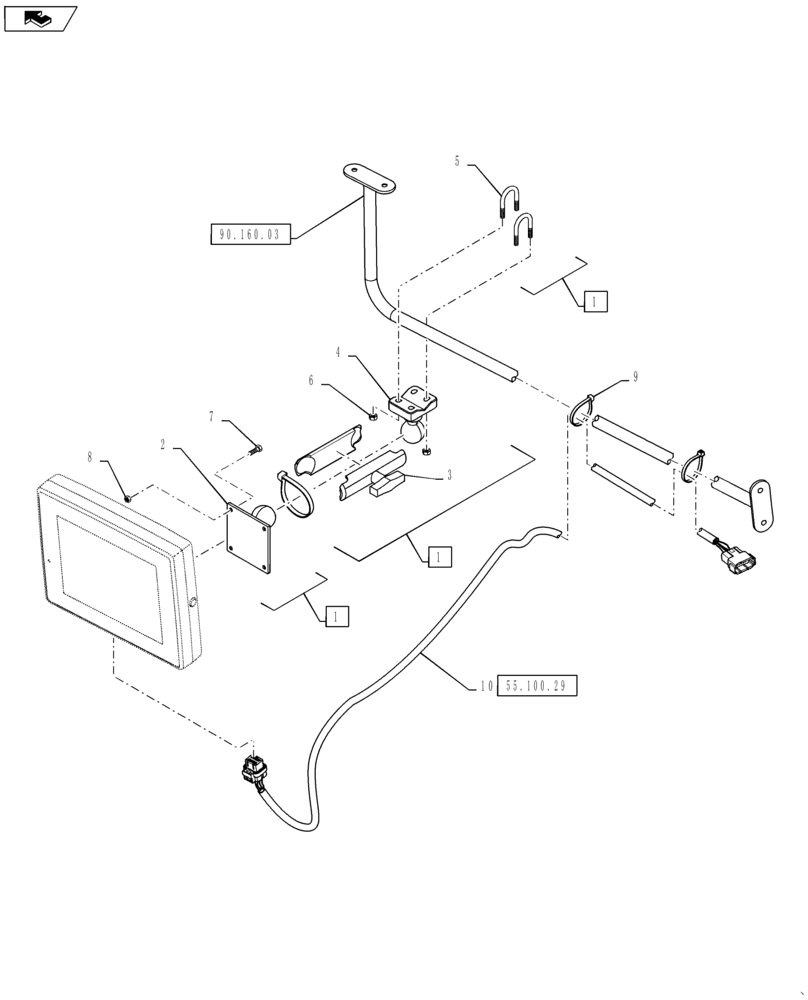

Запчасти Case IH TITAN 3040 (55.911.AD [03]) - AFS MONITOR READY OPTION (55) - ELECTRICAL SYSTEMS

1

87386396

MOUNT

Assembly, Bar To Monitor Mount, Inc. 2 - 6

1шт.

2

87386398

SUPPORTING ARM

Monitor Mount

1шт.

3

87284257

ARM

Double Socket, 1.5" Ball

1шт.

4

87284259

PLATE

Base, Double U-Bolt

1шт.

5

86632541

U-BOLT,1/4” - 20, 1.75” L x 1” W

2шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

7

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

8

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP 7 - 8" Nylon

3шт.

10

87714577

HARNESS

Display

1шт.

See Fig 55.100.29 For Service Parts Breakdown

1шт.
