Запчасти Case IH TITAN 3040 (55.680.AA[01]) - AUTOGUIDANCE CAB HARNESS (55) - ELECTRICAL SYSTEMS

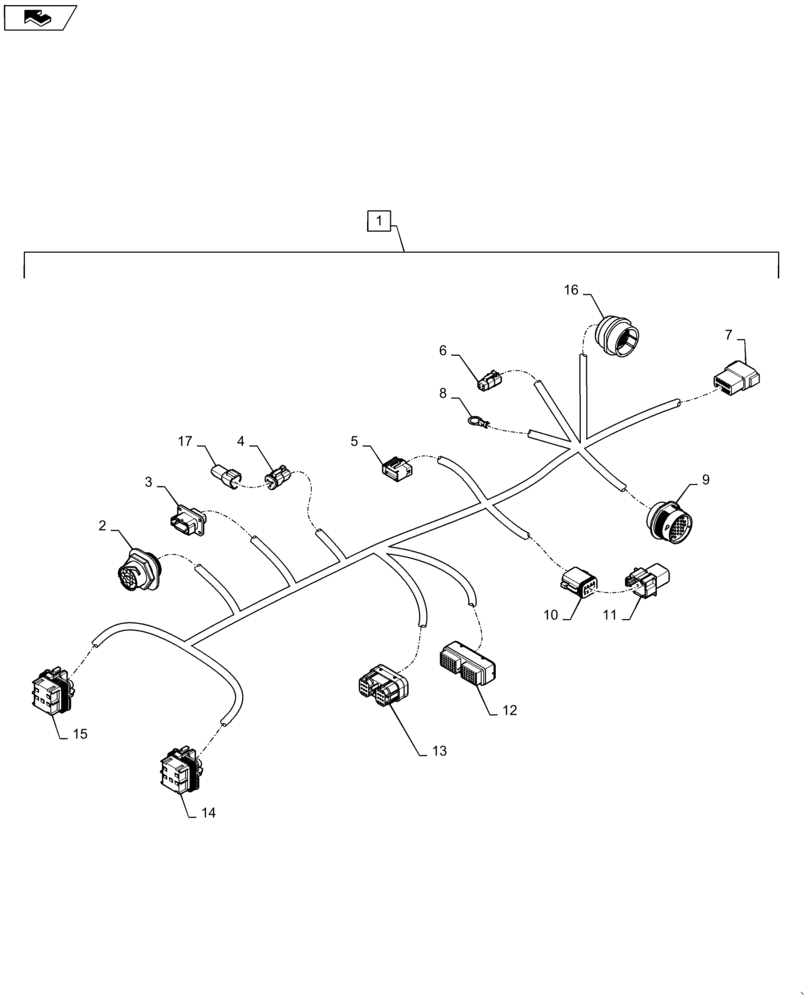

Схема запчастей Case IH TITAN 3040 - (55.680.AA[01]) - AUTOGUIDANCE CAB HARNESS (55) - ELECTRICAL SYSTEMS
1
14
3
11
5
8
2
12
10
home
6
16
9
13
17
15
7
4

Артикул

Название

Примечание

Количество

1

47377161

HARNESS

Cab Autoguidance, Incl 2 - 17

1шт.

2

87736919

CONTACT HOUSING,Female, 9 Pole

Service Port, X-706M

1шт.

2

87737472

JAM NUT,Hex, M35 x 1

Hex, Service Port, X-706M

1шт.

2

87737474

LID

Cover, Service Port, X-706M

1шт.

2

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Nickel, Solid, Service Port, X-706M

2шт.

2

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Nickel, Solid, Service Port, X-706M

2шт.

3

84146421

ELEC CONNECTOR

Male, 12 Pole, Navigation Diagnostic, X-707M

1шт.

3

87705201

WEDGE

Lock, Navigation Diagnostic, X-707M

1шт.

3

87697946

CONNECTOR, ELEC

Male, Nickel, Solid, Navigation Diagnostic, X-707M

3шт.

4

87695580

ELEC CONNECTOR,Female, 3 Pole

Terminator, X-712F

1шт.

4

381415A1

CONNECTOR, ELEC

Wedge Lock, Terminator, X-712F

1шт.

4

225365C1

SOCKET

Female, Gold, Stamped, Terminator, X-712F

2шт.

5

87693718

ELEC CONNECTOR

Female, 6 x 2, Splice, X-709F

1шт.

5

87693741

CAP

Splice, X-709F

1шт.

5

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Female, Tin, Splice, X-709F

7шт.

6

87696138

ELEC CONNECTOR

Female, Remote Engage, X-708F

1шт.

6

87696149

ELEC CONNECTOR

Wedge Lock, Remote Engage, X-708F

3шт.

7

225401C1

CONNECTOR, ELEC

Male, 12 Pole, Autoguidance Interface, X-047M1

1шт.

7

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock, Autoguidance Interface, X-047M1

1шт.

7

87695623

ELEC. TERMINAL PIN

Male, Nickel, Stamped, Autoguidance Interface, X-047M1

1шт.

7

225366C1

ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm

Female, Gold, Stamped, Autoguidance Interface, X-047M1

2шт.

8

84279551

ELEC CONNECTOR,1.00 - 2.50mm

Ring Tongue, M10, Chassis Ground, G1-AG

1шт.

9

87700159

ELEC CONNECTOR

Male, 23 Pole, Autoguidance Bulkhead, XB-07M

1шт.

9

87271930

NUT

Plastic Panel, Autoguidance Bulkhead, XB-07M

1шт.

9

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Male, Nickel, Solid, Autoguidance Bulkhead, XB-07M

11шт.

10

87700325

ELEC CONNECTOR,Female, 8 Cavities

Female, 8 Pole, Splice Pack, X-710F

1шт.

10

225321C1

WEDGE

Wedge Lock, Splice Pack, X-710F

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Stamped, Splice Pack, X-710F

5шт.

11

87587627

CONTACT HOUSING

8 Pole, Bussbar, Splice Pack, X-710M

1шт.

12

87706495

WIRE CONNECTOR

Female, 40 Pole, Nav 1, X-700F

1шт.

12

225365C1

SOCKET

Female, Gold, Stamped, Nav 1, X-700F

2шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Stamped, Nav 1, X-700F

10шт.

13

84146326

WIRE CONNECTOR

Female, 24 Pole, Nav 2, X-701F

1шт.

13

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Female, Nickel, Stamped, Nav 2, X-701F

4шт.

14

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

Relay, RH Steering, X-705F

1шт.

14

87705088

WEDGE

Lock, Relay, RH Steering, X-705F

1шт.

14

87680656

CONTACT

Female, Tin, Relay, RH Steering, X-705F

3шт.

15

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

Relay, LH Steering, X-704F

1шт.

15

87705088

WEDGE

Relay, LH Steering, X-704F

1шт.

15

87680656

CONTACT

Female, Tin, Relay, LH Steering, X-704F

3шт.

16

84818192

ELEC CONNECTOR,Male

37 Pole, Raven Autoguidance Interface, X-717M

1шт.

16

225356C1

PIN

Male, Tin, Raven Autoguidance Interface, X-717M

3шт.

17

84058092

CONTACT HOUSING,120 Ohm Resistor

3W, Terminating Resistor, X-712M

1шт.
