(55.404.BS[01]) - AUXILIARY LIGHTING

Запчасти Case IH TITAN 3040 (55.404.BS[01]) - AUXILIARY LIGHTING (55) - ELECTRICAL SYSTEMS

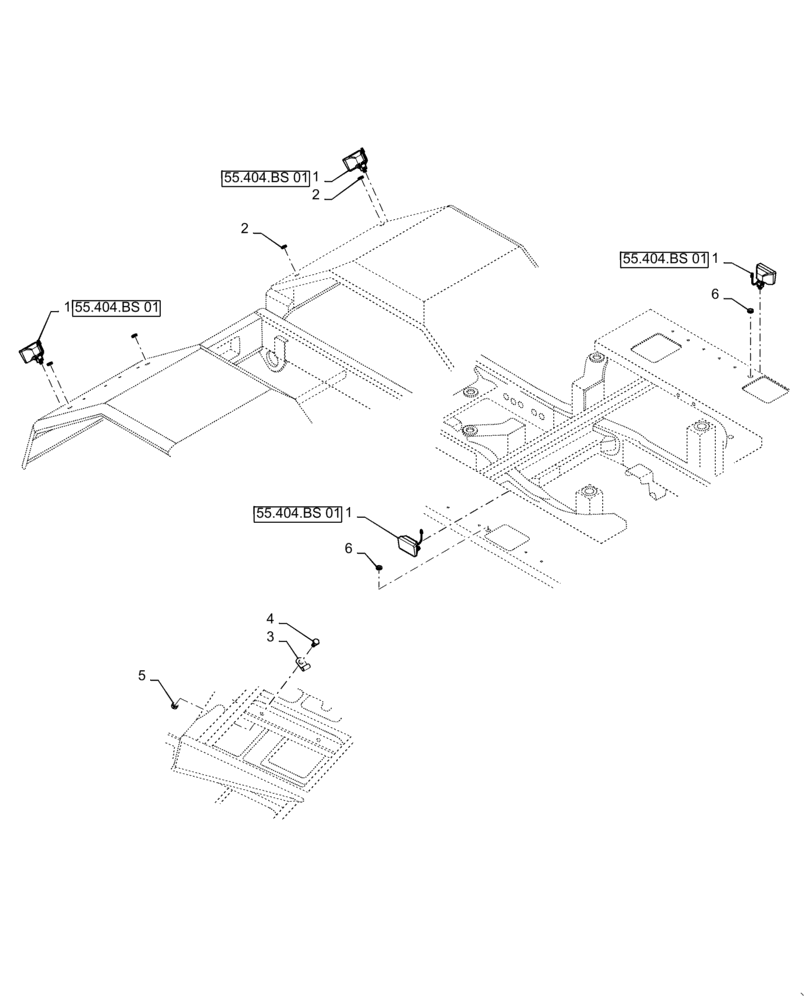

Схема запчастей Case IH TITAN 3040 - (55.404.BS[01]) - AUXILIARY LIGHTING (55) - ELECTRICAL SYSTEMS
55.404.bs 01
55.404.bs 01
3
55.404.bs 01
6
1
1
4
2
5
1
1
6
55.404.bs 01
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87658615

LAMP

35W Flood, Assembly, 3" X 5"

4шт.

2

BN85855

GROMMET

7/8" Hole

4шт.

3

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

8шт.

4

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

8шт.

6

BN2290753

GROMMET

7/8" Hole

2шт.

Выбрано товаров: 6
