Запчасти Case IH TITAN 3040 (55.404.AQ [06]) - HOOD LIGHT HARNESS, 3040, 3540 (55) - ELECTRICAL SYSTEMS

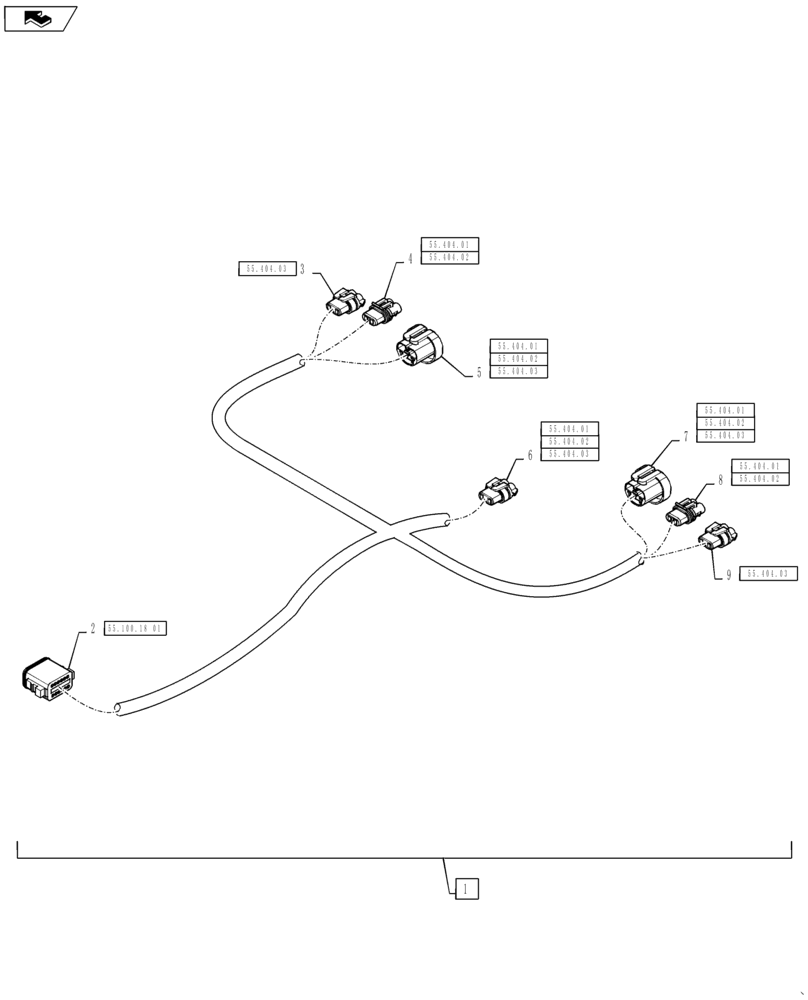

![Схема запчастей Case IH TITAN 3040 - (55.404.AQ [06]) - HOOD LIGHT HARNESS, 3040, 3540 (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/caseih/5311458.png)
№
Артикул
Название
Примечание
Количество
1
84428827
HARNESS
Front Lights, Incl 2 - 9
1шт.
2
87696075
ELEC CONNECTOR
Frame Harness Interface, X-640F1
1шт.
2
84068583
PLUG,12 - 16 Ga, White
Frame Harness Interface, X-640F1
3шт.
2
86500036
TERMINAL,Female, Nickel, 0.75 - 2mm
Frame Harness Interface, X-640F1
6шт.
2
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Frame Harness Interface, X-640F1
3шт.
3
294250A1
CONNECTOR, ELEC
CONNECTOR Alternate LH HID Lamp, X-624F
1шт.
3
87686740
RETAINER
Alternate LH HID Lamp, X-624F
1шт.
3
87680656
CONTACT
Alternate LH HID Lamp, X-624F
2шт.
4
198435A1
CONNECTOR, ELEC
CONNECTOR LH Worklight, X-623F
1шт.
4
198436A1
CONNECTOR, ELEC
CONNECTOR LH Worklight, X-623F
1шт.
4
87680656
CONTACT
LH Worklight, X-623F
2шт.
5
198714A1
CONNECTOR, ELEC
CONNECTOR LH Headlight, X-622F
1шт.
5
84364573
SEAL
LH Headlight, X-622F
1шт.
5
198715A1
CONNECTOR, ELEC
CONNECTOR LH Headlight, X-622F
1шт.
5
87686739
CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm
LH Headlight, X-622F
2шт.
5
87680656
CONTACT
LH Headlight, X-622F
1шт.
6
294250A1
CONNECTOR, ELEC
CONNECTOR Center Worklight, X-621F
1шт.
6
87686740
RETAINER
Center Worklight, X-621F
1шт.
6
87680656
CONTACT
Center Worklight, X-621F
2шт.
7
198714A1
CONNECTOR, ELEC
CONNECTOR RH Headlight, X-620F
1шт.
7
84364573
SEAL
RH Headlight, X-620F
1шт.
7
198715A1
CONNECTOR, ELEC
CONNECTOR RH Headlight, X-620F
1шт.
7
87686739
CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm
RH Headlight, X-620F
2шт.
7
87680656
CONTACT
RH Headlight, X-620F
1шт.
8
198435A1
CONNECTOR, ELEC
CONNECTOR RH Worklight, X-619F
1шт.
8
198436A1
CONNECTOR, ELEC
CONNECTOR RH Worklight, X-619F
1шт.
8
87680656
CONTACT
RH Worklight, X-619F
2шт.
9
294250A1
CONNECTOR, ELEC
CONNECTOR Alternate RH HID Lamp, X-618F
1шт.
9
87686740
RETAINER
Alternate RH HID Lamp, X-618F
1шт.
9
87680656
CONTACT
Alternate RH HID Lamp, X-618F
2шт.
Выбрано товаров: 30
