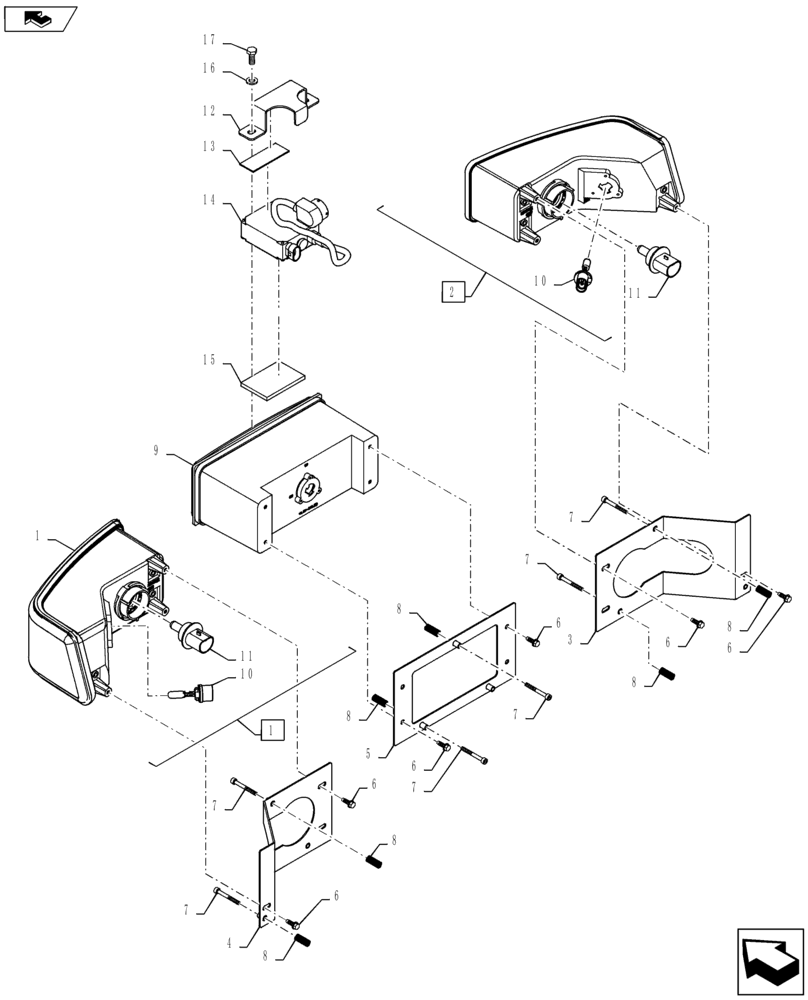

Запчасти Case IH TITAN 3040 (55.404.AQ[02.1]) - STANDARD FRONT LIGHTS WITH OPTIONAL CENTER HID LIGHT, 3 WHL (55) - ELECTRICAL SYSTEMS

1

365842A1

HEADLAMP

LH, Hi/Low, With Worklight, Incl 10 & 11

1шт.

2

365841A1

HEADLAMP

RH, Hi/Low, With Worklight, Incl 10 & 11

1шт.

3

BN326090

MOUNTING PLATE

Headlight Adjuster, RH

1шт.

4

BN326091

MOUNTING PLATE

Headlight Adjuster, LH

1шт.

5

BN326093

MOUNTING PLATE

Headlight Adjuster, Center

1шт.

6

87343659

SELF-TAP SCREW,Hex Wshr, 1/4" - 20 x 3/4"

10шт.

7

87343624

HEX SOC SCREW,M5 x 45mm, Cl 8.8, Full Thd

M5 X 45, 8.8

9шт.

8

342132A1

SPRING

Compression, 9.14 x 1.5 x 25

9шт.

9

232455A2

WORK LAMP,HID, 12V, 35W, Clear

Center Headlight, HID - Includes Bulb (NSS due to cost)

1шт.

10

323093A1

BULB

885-12V, Halogen, Work Lamp

2шт.

11

388872A1

BULB

H4 Halogen, 65W/55W

2шт.

12

333645A1

CLAMP

HID Ballast Hold Down

1шт.

13

333644A1

GASKET

Foam, HID Clamp

1шт.

14

322332A1

BALLAST

Light, Center HID

1шт.

15

333643A1

GASKET

Foam, HID Ballast

1шт.

16

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

17

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

18

84396156

MOUNT

Light, Cab, LH

1шт.

19

84396157

MOUNT

Light, Cab, RH

1шт.

20

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

80 x 30 Halogen

2шт.

21

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

22

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

23

182049A1

GROMMET

Rubber

2шт.

24

84230997

BRACKET, SUPPORTING

Work Light

2шт.

25

86981482

BOLT,Hvy Hex Flg, M8 x 30mm, Cl 8.8, Full Thd

4шт.

26

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

27

355532A1

WASHER

Nylon

4шт.

28

84231001

BRACKET, SUPPORTING

Work Light, LH

1шт.

29

87610713

BOLT,Hex, M8 x 55mm, Cl 8.8

M8 x 55, CL 8.8 DOR

2шт.

30

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

80 x 30 Halogen

2шт.

31

84231006

BRACKET, SUPPORTING

Work Light, RH

1шт.

32

1312210C2

BULB,Halogen H3, 12V, 55W

H3 Halogen, 12V, 55W

1шт.

33

276498A1

LENS

Refelector

1шт.

34

1964806C1

BEZEL

Flood Lamp

1шт.
