(55.404.AQ[01]) - STANDARD FRONT LIGHTS, 3040, 3540

Запчасти Case IH TITAN 3040 (55.404.AQ[01]) - STANDARD FRONT LIGHTS, 3040, 3540 (55) - ELECTRICAL SYSTEMS

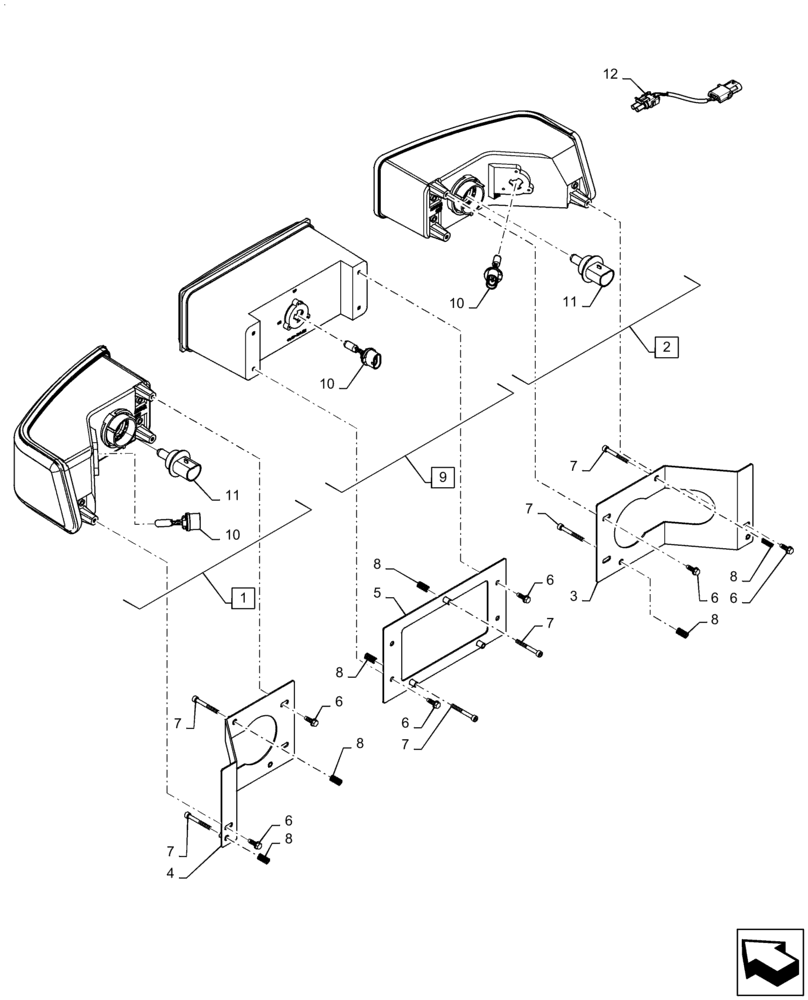

Схема запчастей Case IH TITAN 3040 - (55.404.AQ[01]) - STANDARD FRONT LIGHTS, 3040, 3540 (55) - ELECTRICAL SYSTEMS
7
2
10
8
6
8
8
3
6
7
11
1
12
11
8
7
6
7
8
6
8
10
5
9
7
4
7
10
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

365842A1

HEADLAMP

LH, Hi/Low, With Worklight, Incl. Ref 10 - 11

1шт.

2

365841A1

HEADLAMP

RH, Hi/Low, With Worklight, Incl. Ref 10 - 11

1шт.

3

BN326090

MOUNTING PLATE

Headlight Adjuster, RH

1шт.

4

BN326091

MOUNTING PLATE

Headlight Adjuster, LH

1шт.

5

BN326093

MOUNTING PLATE

Headlight Adjuster, Center

1шт.

6

87343659

SELF-TAP SCREW,Hex Wshr, 1/4" - 20 x 3/4"

10шт.

7

87343624

HEX SOC SCREW,M5 x 45mm, Cl 8.8, Full Thd

9шт.

8

342132A1

SPRING

Compression, 9.14 x 1.5 x 25

9шт.

9

232454A2

WORK LAMP,Halogen, 12V, 60W, Clear

Center Head Light, Halogen, Incl. Ref 10

1шт.

10

323093A1

BULB

885-12V, Halogen, Work Lamp

3шт.

11

388872A1

BULB

H4 Halogen, 65W/55W

2шт.

12

87265150

WIRE HARNESS

Adapter

1шт.
