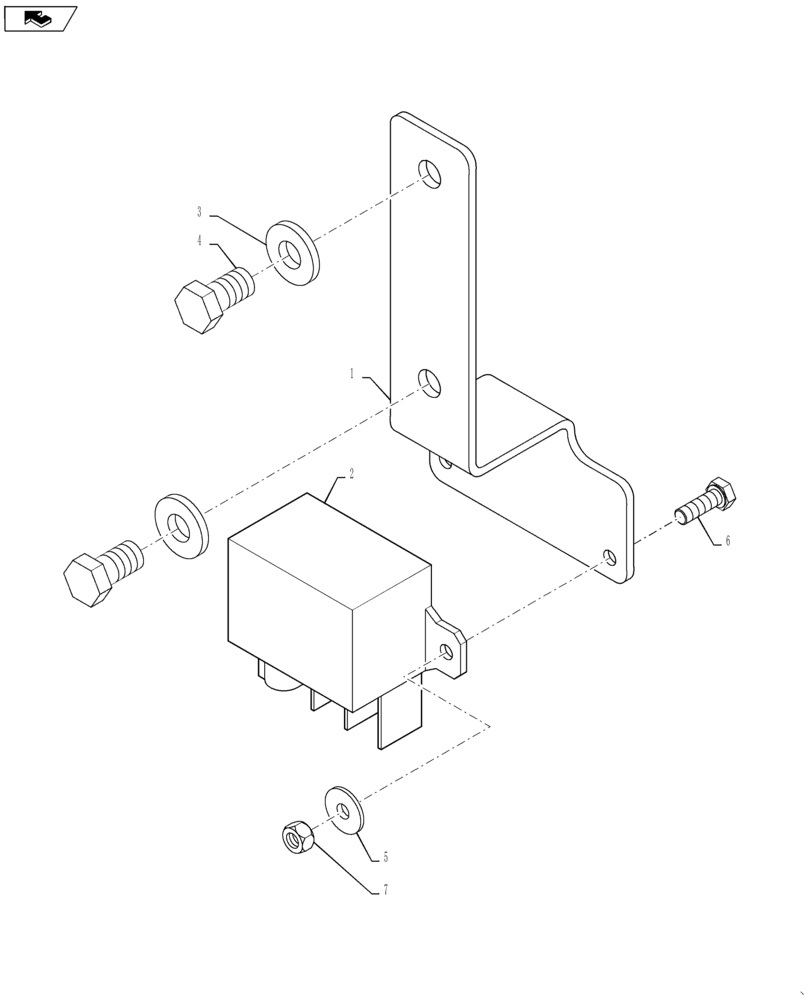

Запчасти Case IH TITAN 3040 (55.202.AA[01]) - COLD START RELAY (55) - ELECTRICAL SYSTEMS

1

47448880

MOUNT

Relay

1шт.

2

86619908

RELAY,12V, 150A

Cold Start / Intermediate Start

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

4

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 X 20, 8.8, DOR

2шт.

5

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

6

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

7

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.
