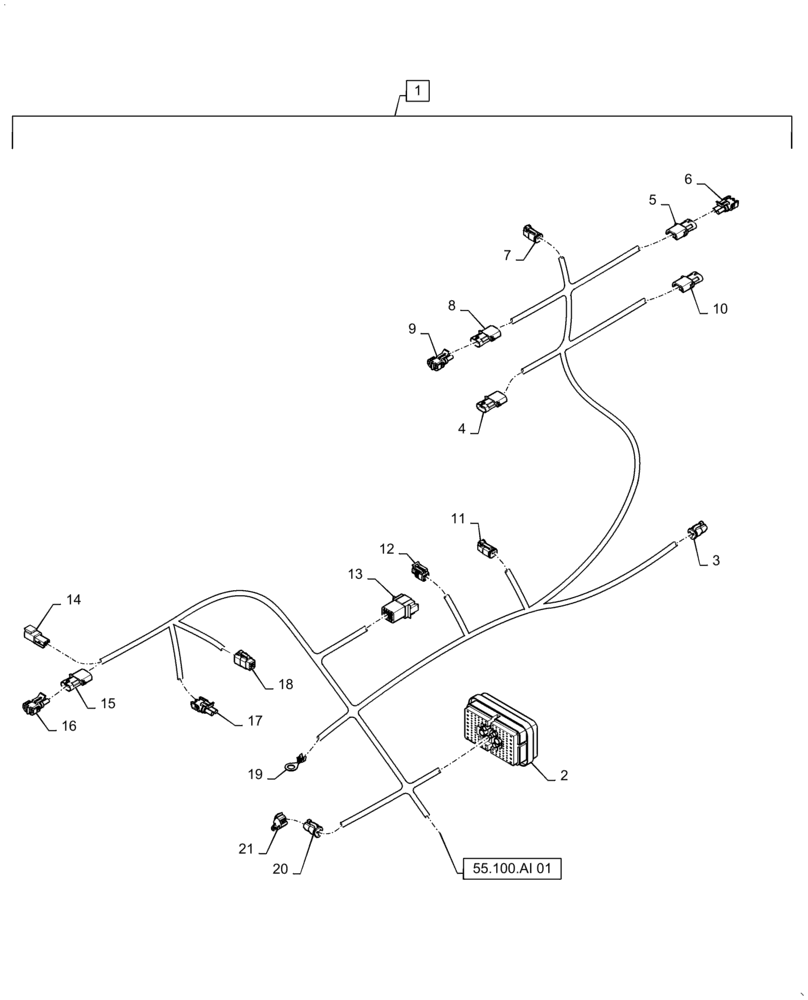

Запчасти Case IH TITAN 3040 (55.100.AI[02]) - MAIN FRAME HARNESS (55) - ELECTRICAL SYSTEMS

1

47435593

WIRE HARNESS

Main Frame, Incl 2 - 21

1шт.

2

437552A1

ELEC CONNECTOR,Female, 102 Pin

Cab Interface, XB-6F1

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cab Interface, XB-6F1

43шт.

2

87695618

TERMINAL

Female, Nickel, Cab Interface, XB-6F1

7шт.

2

87695923

TERMINAL

Female, Nickel, Cab Interface, XB-6F1

4шт.

2

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Nickel, Cab Interface, XB-6F1

4шт.

2

84068583

PLUG,12 - 16 Ga, White

Sealing, Cab Interface, XB-6F1

40шт.

2

87708094

WEDGE

Lock, LH Side, Cab Interface, XB-6F1

1шт.

2

87708095

WEDGE

Lock, RH Side, Cab Interface, XB-6F1

1шт.

2

84479010

BOOT

Cab Interface, XB-6F1

1шт.

3

87695580

ELEC CONNECTOR,Female, 3 Pole

LH Flasher, X-626F1

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Flasher, X-626F1

3шт.

3

84074639

LOCKING TAB,Wedge Lock

Wedge Lock, LH Flasher, X-626F1

1шт.

4

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

2 Speed Axle On, X-614M1

1шт.

4

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Male, 2 Speed Axle On, X-614M1

2шт.

5

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Auxiliary Drive, Off, X-617M1

1шт.

5

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Male, Auxiliary Drive, Off, X-617M1

2шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

Cap For Auxiliary Drive, Off, X-617F1

1шт.

6

87686742

PLUG

Cavity, Green, Cap For Auxiliary Drive, Off, X-617F1

2шт.

7

87695582

ELEC CONNECTOR,Female, 2 Pole

Park Brake, X-631F1

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Park Brake, X-631F1

2шт.

7

84074638

LOCKING TAB,Locking Wedge, Green

Park Brake, X-631F1

1шт.

8

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Auxiliary Drive On, X-613M1

1шт.

8

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Male, Auxiliary Drive On, X-613M1

2шт.

9

87692855

CONTACT HOUSING,Male, 2 Cavities

Cap For Auxiliary Drive On, X-613F1

1шт.

9

87686742

PLUG

Cavity, Green, Cap For Auxiliary Drive On, X-613F1

2шт.

10

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

2 Speed Axle Off, X-618M1

1шт.

10

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Male, 2 Speed Axle Off, X-618M1

2шт.

11

87695582

ELEC CONNECTOR,Female, 2 Pole

Air Horn, X-615F1

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Air Horn, X-615F1

2шт.

11

84074638

LOCKING TAB,Locking Wedge, Green

Air Horn, X-615F1

1шт.

12

84078681

WIRE CONNECTOR,Female

3 Cavity, Air Pressure Sensor, X-637F1

1шт.

12

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Tin, Air Pressure Sensor, X-637F1

3шт.

13

225320C1

ELEC CONNECTOR

Male, 8 Cavity, Remote Control, X-800M1

1шт.

13

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

Remote Control, X-800M1

6шт.

13

84068583

PLUG,12 - 16 Ga, White

Sealing, Remote Control, X-800M1

2шт.

13

84806919

PLUG,Wedge Lock

Wedge Lock, Green, Remote Control, X-800M1

1шт.

14

222136A1

ELEC CONNECTOR,Male, 2 Pin

LH Auxiliary Boom Light, X-627M1

1шт.

14

87696141

TERMINAL

Male, Nickel, LH Auxiliary Boom Light, X-627M1

2шт.

14

87696585

LOCKING TAB,Wedge Lock, 2-Pin

Wedge Lock, Orange, LH Auxiliary Boom Light, X-627M1

1шт.

15

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Remote Park Brake, X-630M1

1шт.

15

87692882

ELEC. TERMINAL PIN

Male, Tin, Remote Park Brake, X-630M1

1шт.

15

87692880

CABLE TERMINAL

Male, Tin, Remote Park Brake, X-630M1

1шт.

16

87692855

CONTACT HOUSING,Male, 2 Cavities

Cap For Remote Park Brake, X-630F1

1шт.

16

87686742

PLUG

Cavity, Green, Cap For Remote Park Brake, X-630F1

2шт.

17

87692855

CONTACT HOUSING,Male, 2 Cavities

Hydraulic Filter, X-629F1

1шт.

17

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

Female, Hydraulic Filter, X-629F1

2шт.

18

87700107

ELEC CONNECTOR

Female, 6 Cavity, Hydraulic Oil Level Sensor, X-628F1

1шт.

18

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Hydraulic Oil Level Sensor, X-628F1

5шт.

18

84807680

PLUG

Sealing, Red, Hydraulic Oil Level Sensor, X-628F1

1шт.

18

87705582

ELEC CONNECTOR

Wedge Lock, Hydraulic Oil Level Sensor, X-628F1

1шт.

19

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

Clean Ground, GND2.1

1шт.

20

87695580

ELEC CONNECTOR,Female, 3 Pole

Torque Select, X-832F1

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Torque Select, X-832F1

3шт.

20

84074639

LOCKING TAB,Wedge Lock

Wedge Lock, Orange, Torque Select, X-832F1

1шт.

21

84391165

HOUSING,Male, 3 Pins

Cap For Torque Select, X-832M1

1шт.
