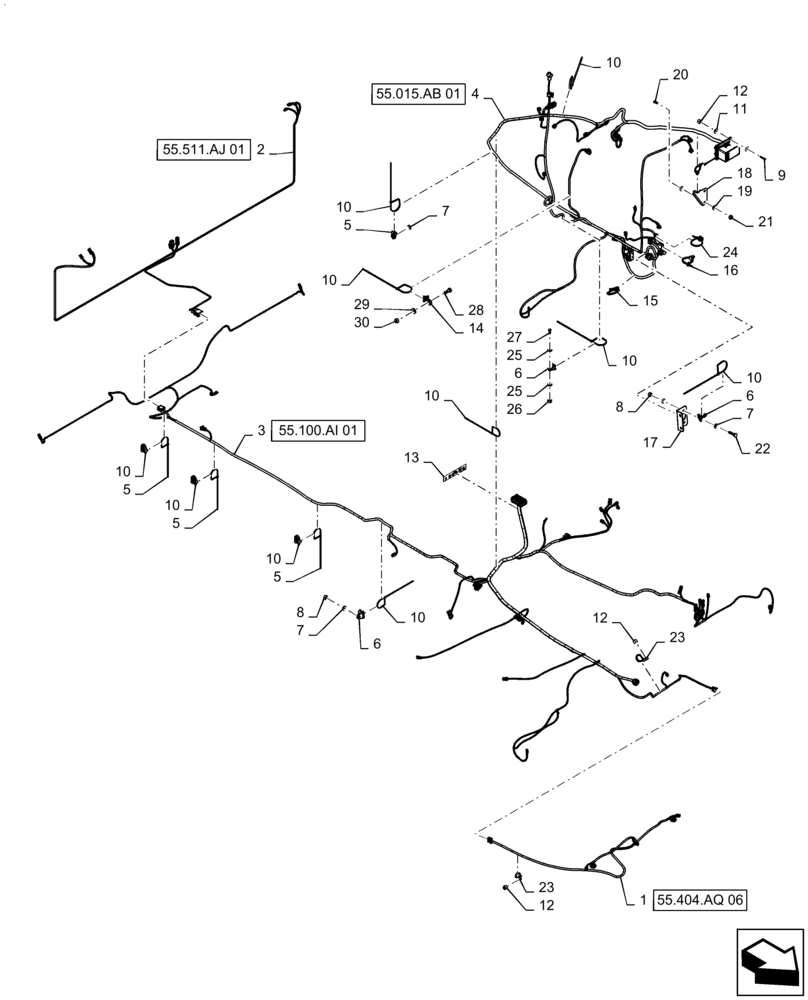

Запчасти Case IH TITAN 3040 (55.100.AG[01]) - WIRE HARNESS, MAIN FRAME LAYOUT (55) - ELECTRICAL SYSTEMS

1

84428827

HARNESS

Hood Lights

1шт.

See 55.404.AQ 06 For Service

1шт.

2

84428831

HARNESS

Tail light

1шт.

See 55.511.AJ 01 For Service

1шт.

3

47435593

WIRE HARNESS

Main Frame, 3 Wheel

1шт.

See 55.100.AI 01 For Service

1шт.

4

47826210

WIRE HARNESS

Engine Harness

1шт.

See 55.015.AB 01 For Service

1шт.

5

84340333

BASE PLATE

Tie

10шт.

6

84360210

BASE

Tie

6шт.

7

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

9шт.

8

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

8шт.

9

87343600

SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd

4шт.

10

BN570007

STRAP

Black, 14-1/2" Long

31шт.

11

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

4шт.

12

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

7шт.

13

84318554

DECAL

Bulkhead Layout

1шт.

14

84407295

BASE

M8, Stud

2шт.

15

84526828

STRAP

Fir Tree, Cable Tie

1шт.

16

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

4шт.

17

47464132

MOUNT

Electric Bulkhead

1шт.

18

47464243

MOUNT

Harness

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

20

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

21

43362

NUT,M8 x 1.25, Cl 10

2шт.

22

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

23

BN9990114

STRAP

7-1/2"

7шт.

24

47395250

CABLE TIE,200mm L

2шт.

25

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

26

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

27

16043430

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

28

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

29

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

30

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.
