(55.024.AA[04]) - ADAPTER HARNESS, USED WITHOUT AUXILIARY TRANSMISSION

Запчасти Case IH TITAN 3040 (55.024.AA[04]) - ADAPTER HARNESS, USED WITHOUT AUXILIARY TRANSMISSION (55) - ELECTRICAL SYSTEMS

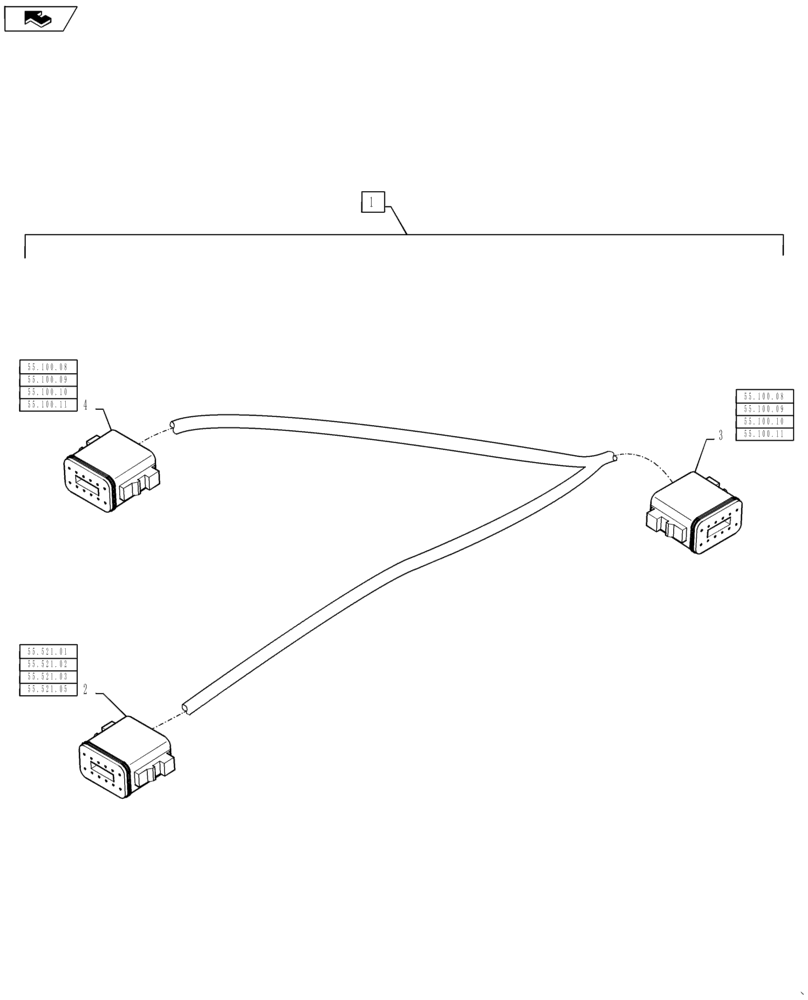

Схема запчастей Case IH TITAN 3040 - (55.024.AA[04]) - ADAPTER HARNESS, USED WITHOUT AUXILIARY TRANSMISSION (55) - ELECTRICAL SYSTEMS
55.521.02
55.100.09
4
home
55.521.03
55.100.09
55.521.05
55.100.08
55.100.11
55.100.11
2
1
3
55.100.10
55.521.01
55.100.10
55.100.08
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87270254

WIRE HARNESS

Adapter, No Aux Transmission

1шт.

2

225389C1

CONNECTOR, ELEC

CONNECTOR P126

1шт.

2

87695651

LOCKING TAB,Wedge Lock

P126

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

P126

10шт.

3

225388C1

ELEC CONNECTOR,Male, 12 Pin

J126

1шт.

3

87698541

LOCKING TAB,Wedge Lock, 12-Pin

J126

1шт.

3

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

J126

10шт.

4

225388C1

ELEC CONNECTOR,Male, 12 Pin

J127

1шт.

4

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Lock, J127

1шт.

4

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

J127

10шт.
