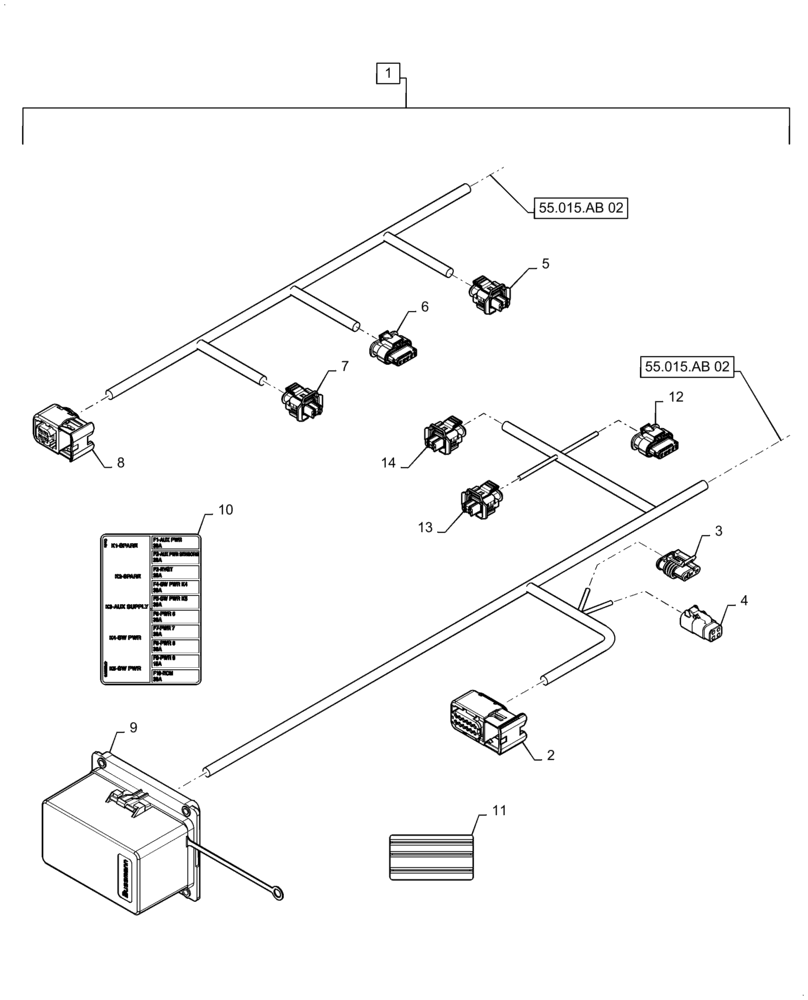

Запчасти Case IH TITAN 3040 (55.015.AB[01]) - ENGINE WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

47826210

WIRE HARNESS

Engine, Denox, 3 Wheel, Incl 2 - 14

1шт.

2

84152570

ELEC CONNECTOR,Female, 12 Cavities

Denox Supply Module, X-823F1

1шт.

2

84152576

TERMINAL

Female, Tin, Denox Supply Module, X-823F1

7шт.

2

84129571

PLUG

Denox Supply Module, X-823F1

4шт.

2

84567010

COVER

Denox Supply Module, X-823F1

1шт.

3

84062580

CONNECTOR, ELEC

3 Cavity, Female, Urea Level, X-803F1

1шт.

3

87687564

TERMINAL CONNECTOR

Female, Tin, Urea Level, X-803F1

2шт.

3

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

1шт.

3

82012084

SEAL,1.4mm ID

Cavity, Yellow, Urea Level, X-803F1

3шт.

4

87696138

ELEC CONNECTOR

4 Cavity, Female, Urea Quality, X-838F1

1шт.

4

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Urea Quality, X-838F1

4шт.

4

87696149

ELEC CONNECTOR

Wedge Lock, Urea Quality, X-838F1

1шт.

5

87709793

WIRE CONNECTOR,Female, 2 Cavities

Upstream Exhaust Temp Sensor, X-827F1

1шт.

5

84130602

TERMINAL CONNECTOR

Male, Tin, Upstream Exhaust Temp Sensor, X-827F1

2шт.

5

87705976

SEAL

White, Upstream Exhaust Temp Sensor, X-827F1

2шт.

6

84190317

WIRE CONNECTOR,Female, 5 Cavities

5 Cavity, Female, DownStream NOX Sensor, X-825F1

1шт.

6

84190318

TERMINAL CONNECTOR

Female, Tin, DownStream NOX Sensor, X-825F1

4шт.

6

84142302

SEAL

Cavity, Green, DownStream NOX Sensor, X-825F1

4шт.

6

87709655

BLANK-OFF PLUG

DownStream NOX Sensor, X-825F1

1шт.

7

87709793

WIRE CONNECTOR,Female, 2 Cavities

Downstream Exhaust Temp Sensor, X-828F1

1шт.

7

84130602

TERMINAL CONNECTOR

Male, Tin, Downstream Exhaust Temp Sensor, X-828F1

2шт.

7

87705976

SEAL

White, Downstream Exhaust Temp Sensor, X-828F1

2шт.

8

84146686

ELEC CONNECTOR,Female, 4 Cavities

4 Cavity, Female, NH3 Sensor, X-831F1

1шт.

8

47738059

TERMINAL

Female, NH3 Sensor, X-831F1

2шт.

8

84152584

TERMINAL,Tin, 0.50 - 1.00mm

Female, NH3 Sensor, X-831F1

2шт.

9

87312843

FUSE BOX

External Fuse Relay, X-810F1

1шт.

9

87655334

RELAY,12V, 35A, Micro

External Fuse Relay, X-810F1

3шт.

9

84127708

FUSE,30A, Mini, Green

External Fuse Relay, X-810F1

7шт.

9

121414A1

FUSE,20A, Mini, Yellow

External Fuse Relay, X-810F1

2шт.

9

84127703

FUSE,15A, Mini, Blue

External Fuse Relay, X-810F1

1шт.

9

84392736

TERMINAL CONNECTOR

Female, Tin, External Fuse Relay, X-810F1

20шт.

9

87704966

TERMINAL

Female, Tin, External Fuse Relay, X-810F1

10шт.

9

87693249

ELEC. TERMINAL PIN

Female, Tin, External Fuse Relay, X-810F1

5шт.

9

84286327

SEAL

Cable, Green, External Fuse Relay, X-810F1

12шт.

9

87698530

SEAL

Cable, Blue, External Fuse Relay, X-810F1

20шт.

9

87686742

PLUG

Cavity, Green, External Fuse Relay, X-810F1

18шт.

10

47825970

DECAL

Engine External Fuse Relay, X-810F1

1шт.

11

47584669

RETAINER

External Fuse Relay, X-810F1

1шт.

12

84190317

WIRE CONNECTOR,Female, 5 Cavities

Female, 5 Cavity, DOC Upstream NOX Sensor, X-836F1

1шт.

12

84190318

TERMINAL CONNECTOR

Female, Tin, DOC Upstream NOX Sensor, X-836F1

5шт.

12

84142302

SEAL

Cable, Green, DOC Upstream NOX Sensor, X-836F1

5шт.

13

87709793

WIRE CONNECTOR,Female, 2 Cavities

DOC Upstream Temp Sensor, X-839F1

1шт.

13

84130602

TERMINAL CONNECTOR

Male, Tin, DOC Upstream Temp Sensor, X-839F1

2шт.

13

87705976

SEAL

Wire, White, DOC Upstream Temp Sensor, X-839F1

2шт.

14

87709793

WIRE CONNECTOR,Female, 2 Cavities

DEF Dosing Module, X-804F1

1шт.

14

84130602

TERMINAL CONNECTOR

Male, Tin, DEF Dosing Module, X-804F1

2шт.

14

87705976

SEAL

Wire, White, DEF Dosing Module, X-804F1

2шт.
