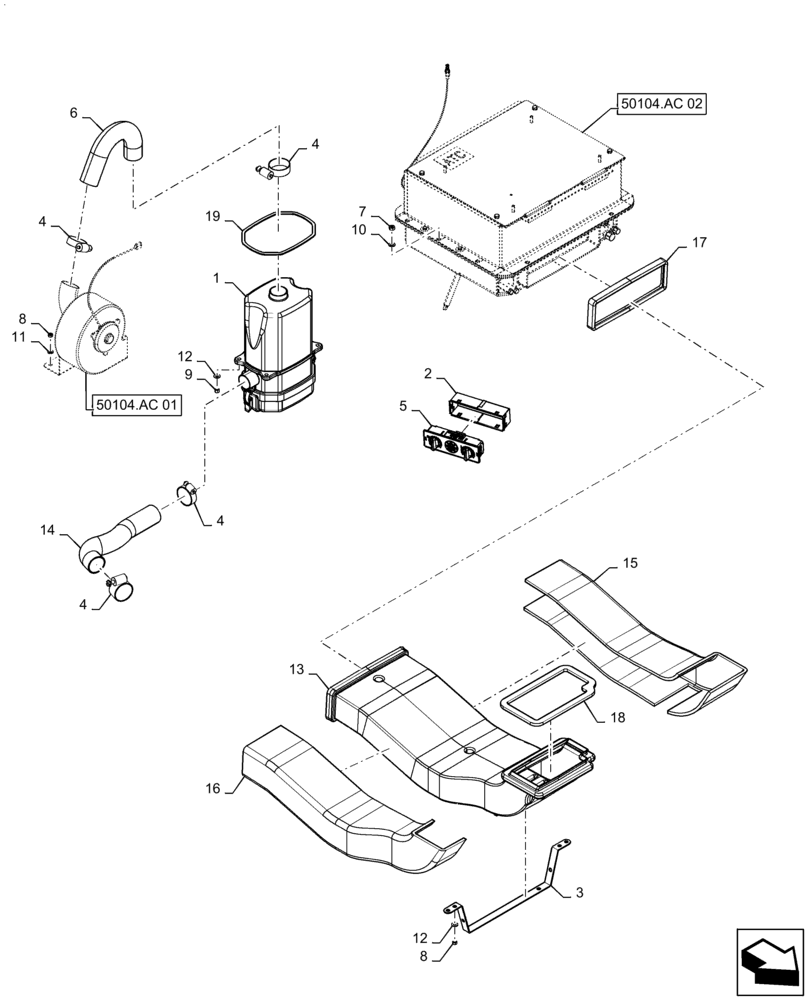

Запчасти Case IH TITAN 3040 (50.100.AP[01]) - HVAC AND CONTROLS (50) - CAB CLIMATE CONTROL

1

87596194

HOUSING

HSG Clean Air

1шт.

2

87281122

SLEEVE

Mount, DIN

1шт.

3

384950A2

BRACKET

Duct

1шт.

4

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

4шт.

5

47542136

HVAC DIN Unit

1шт.

6

307024A4

INTAKE AIR HOSE,57.00 mm ID x 390.00 mm

1шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

11

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

3шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

13

327851A1

DUCT

HVAC

1шт.

14

87380071

HOSE,54.00 mm ID x 975.00 mm, SAE 20R4

1шт.

15

328052A2

FOAM INSULATION

HVAC Duct

1шт.

16

328051A2

FOAM INSULATION

HVAC Duct

1шт.

17

359670A2

INSULATION,60mm W x 860mm L x 10mm Thk

Seal Duct

1шт.

18

278967A3

GASKET

Seal Duct To Cab Floor

1шт.

19

359586A1

SEAL

Filter, Floor Panel

1шт.
