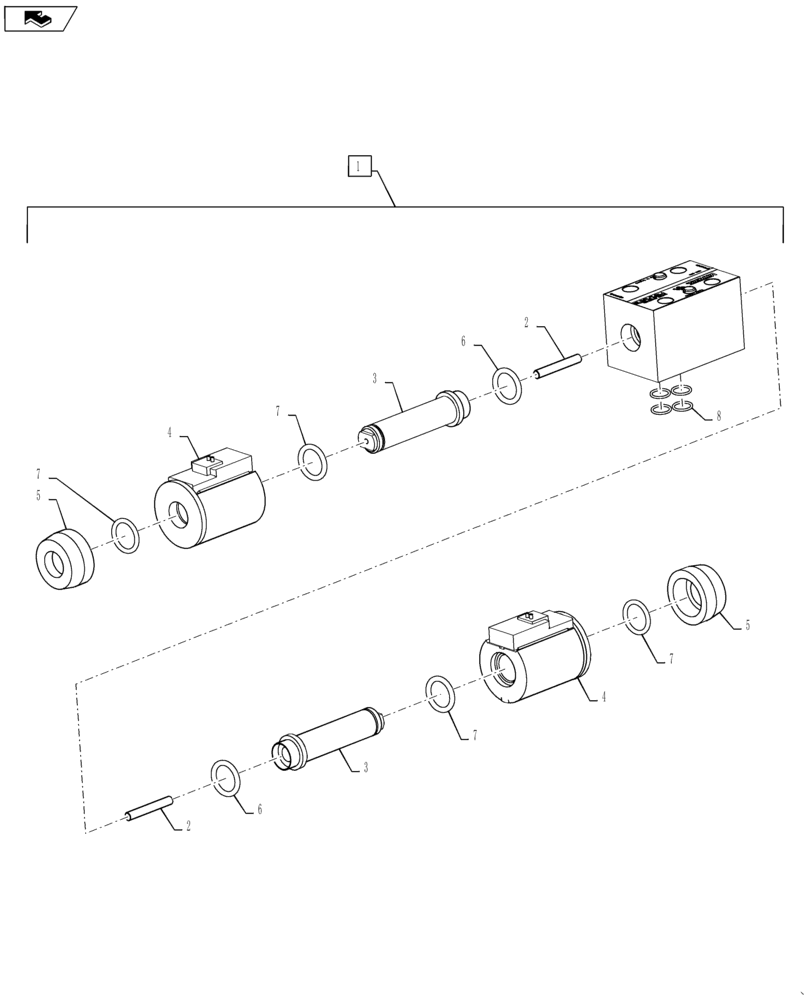

Запчасти Case IH TITAN 3040 (41.432.AE[02]) - AUTOGUIDANCE PROPORTIONAL VALVE (41) - STEERING

1

84129314

VALVE

Proportional, 2 GPM, Complete, Incl 2 - 8

1шт.

2

196737A1

SPLIT PIN/SAFETY PIN

2шт.

3

87439633

TUBE,17.5mm OD x 72.81mm OAL

2шт.

4

87662365

COIL

12VDC, Proportional

2шт.

5

188106A1

NUT

M20 x 1, Retaining

2шт.

6

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

7

122056

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

4шт.

8

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

4шт.
