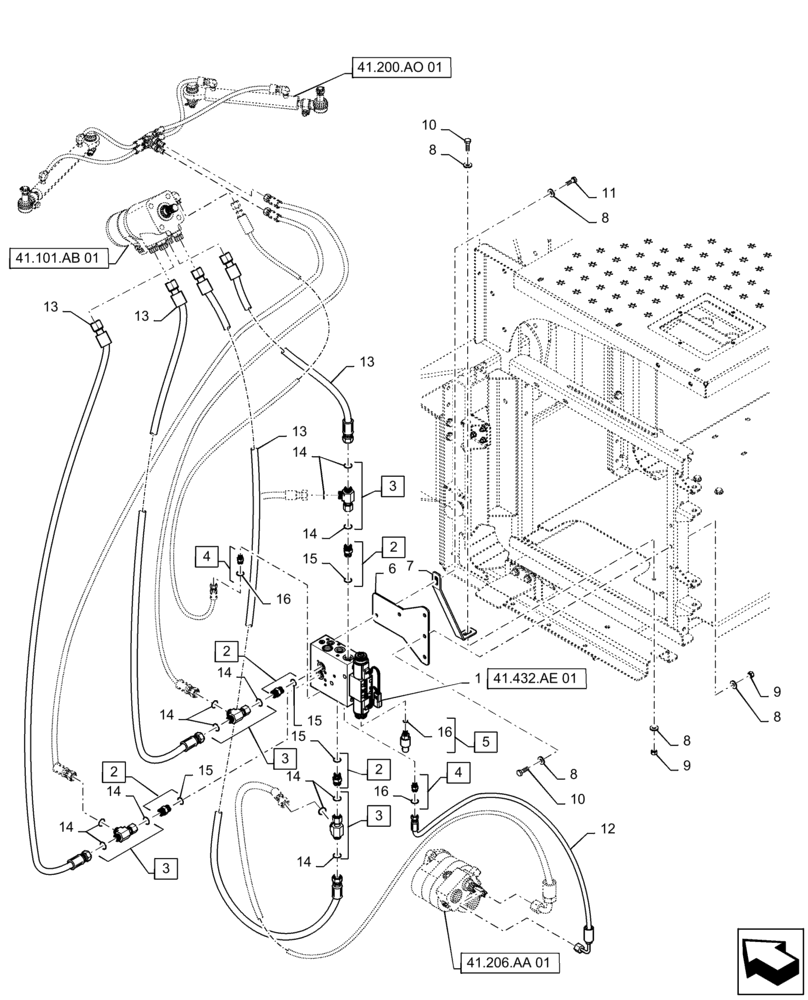

Запчасти Case IH TITAN 3040 (41.432.AC[01]) - AUTOGUIDANCE HYDRAULIC LINES (41) - STEERING

1

84139307

VALVE

Auto Guidance

1шт.

See 41.432.AE 01 For Service

1шт.

2

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB, Incl 15

4шт.

3

BN302436

TEE

13/16 -16 ORFS x 13/16 -16 ORFS Swivel, Incl 14

4шт.

4

BN302640

FITTING

9/16 -18 ORFS x 7/16 -20 ORB, Incl 16

2шт.

5

87428328

PRESSURE SWITCH

3000 PSI, Autoguidance Manual Kick Out, 3000 PSI, Incl 16

1шт.

6

84203624

MOUNT

Autoguide Valve

1шт.

7

84203626

BRACKET

Autoguide Valve

1шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

10

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

11

87342767

BOLT

3/8"-16 x 1-1/2", G5, Full Thd

2шт.

12

84234765

HYDRAULIC HOSE

9/16-18 Female ORFS Swivel x 19/16-18 Female ORFS Swivel Elbow x 1/4" ID x 81" Long, Auto Guidance Valve To Gear Pump

1шт.

13

84234764

HYDRAULIC HOSE

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel Elbow x 1/2" ID x 81" Long, Auto Guidance Valve To Obital

4шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

16шт.

15

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

4шт.

16

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

1шт.
