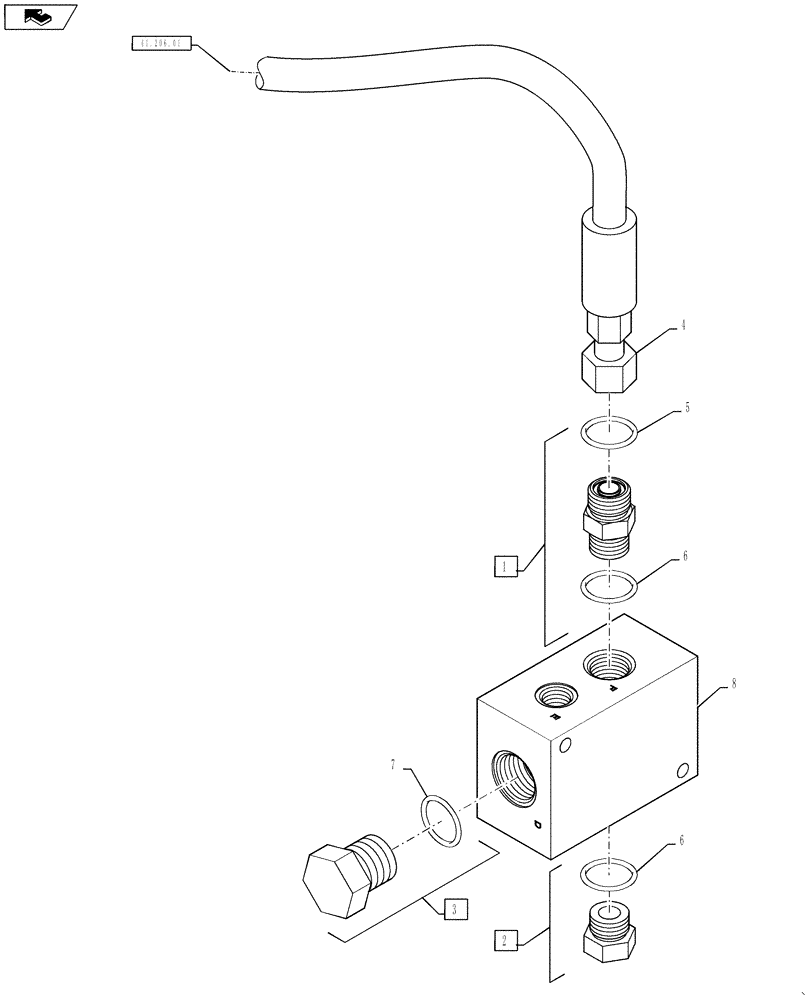

Запчасти Case IH TITAN 3030 (35.300.05) - HYDRAULIC MANIFOLD GROUP, BARE CHASSIS (35) - HYDRAULIC SYSTEMS

1

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Includes Ref 5 - 6

1шт.

2

BN54270

PLUG

1-1/16" -12 ORB, Includes Ref 6

1шт.

3

BN60479

PLUG

1-5/16" -12 ORB, Includes Ref 7

1шт.

4

BN307830

HOSE ASSY.

1-3/16"-12 ORFS Swivel Short Elbow x 1-3/16"-12 ORFS Swivel x 3/4" ID x 130" Long, Chassis Manifold To Gear Pump

1шт.

5

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

1шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

2шт.

7

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

1шт.

8

BN302877

MANIFOLD

Oil Return

1шт.
