Запчасти Case IH TITAN 3030 (35.300.02) - HYDRAULIC IN-TANK FILTER (35) - HYDRAULIC SYSTEMS

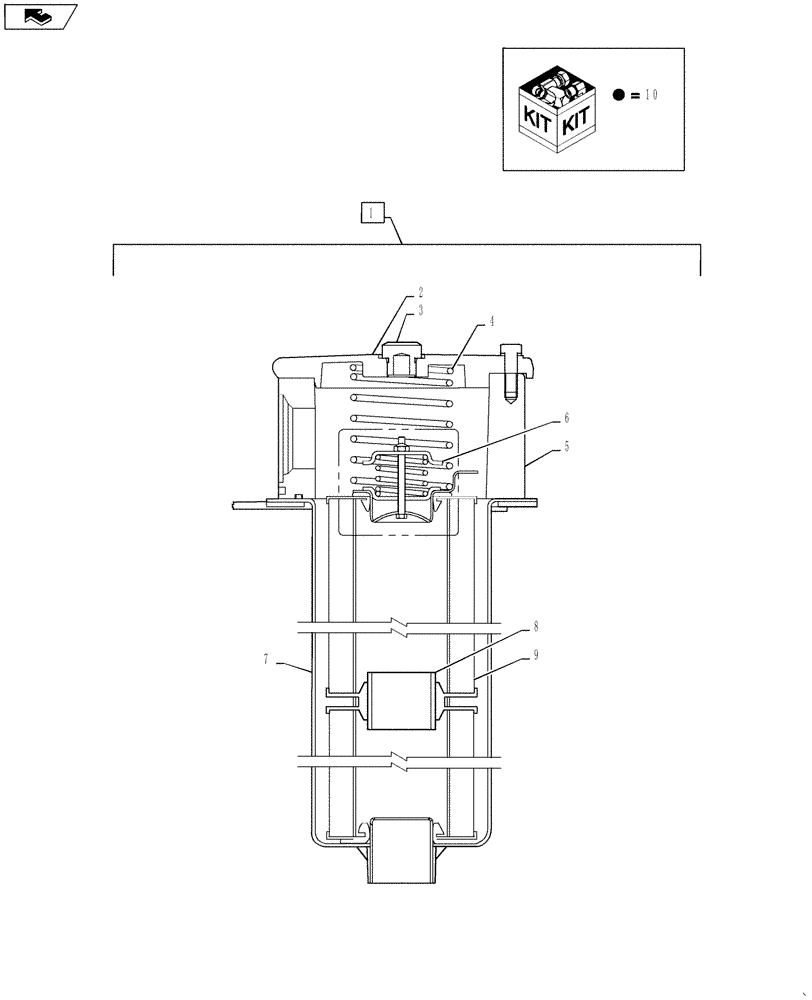

Схема запчастей Case IH TITAN 3030 - (35.300.02) - HYDRAULIC IN-TANK FILTER (35) - HYDRAULIC SYSTEMS
6
home
4
7
2
5
8
10
3
9
10
1

Артикул

Название

Примечание

Количество

1

87267809

HYDRAULIC OIL FILTER

In-Tank, Includes Ref 2 - 10

1шт.

2

87272027

CAP

With Fill Port

1шт.

3

214389

PLUG,3/4" - 16 ORB

1шт.

4

87272028

SPRING

Compression

1шт.

5

87272030

FILTER HEAD

1шт.

6

87272029

FILTER ASSY

By-Pass Assembly, Oil

1шт.

7

87270357

FILTER BOWL

Housing

1шт.

8

87270366

SPACER

Filter Element

1шт.

9

87272033

ELEMENT

Oil Filter

2шт.

10

87272032

SEAL KIT

Buna, Oil Filter

1шт.

Выбрано товаров: 10
