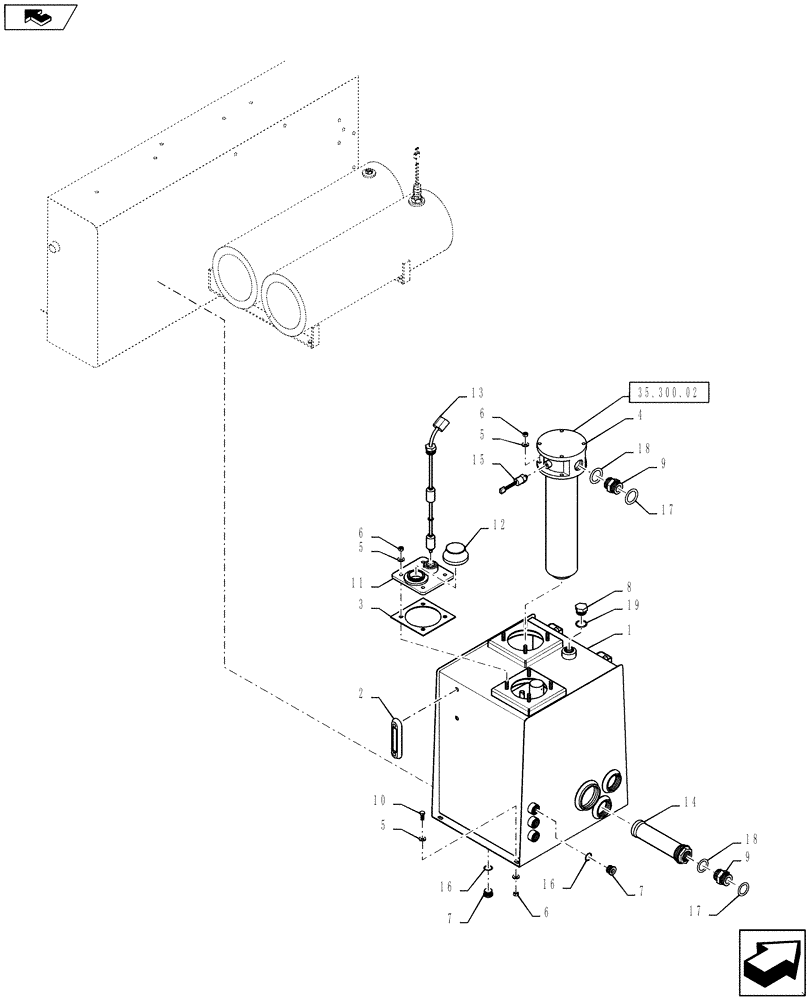

Запчасти Case IH TITAN 3030 (35.300.01) - HYDRAULIC TANK GROUP (35) - HYDRAULIC SYSTEMS

1

87270368

TANK

Hydraulic, 31 Gallon

1шт.

2

BN322594

GAUGE

Sight, W/Temperature

1шт.

3

87272095

GASKET,3.17mm Thk

Cover Plate

1шт.

4

87267809

HYDRAULIC OIL FILTER

1шт.

See Fig 35.300.02 For Service Parts

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

7

218-5212

PLUG,1-1/16" - 12 ORB

Includes Ref 16

2шт.

8

BN60479

PLUG

1-5/16" -12 ORB, Includes Ref 19

1шт.

9

BN302660

FITTING

1-11/16-12 ORFS x 1-5/8-12 ORB, Includes Ref 17 and 18

2шт.

10

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

11

87272100

PLATE

Sensor Mount

1шт.

12

BN304339

VALVE

Pressure Valve

1шт.

13

BN324116

INDICATOR

Sensor, Multiple Oil Level And Oil Temperature

1шт.

14

BN303528

STRAINER ASSY.

32MB X 20 FB, 100 Mesh

1шт.

15

87267808

PRESSURE SWITCH

Oil Tank, 25 PSI

1шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

2шт.

17

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

18

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-5/8", ORB

2шт.

19

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

1шт.
