(33.300.03[03]) - BRAKE CALIPER ASSEMBLY, SN YCT033001 AND AFTER

Запчасти Case IH TITAN 3030 (33.300.03[03]) - BRAKE CALIPER ASSEMBLY, SN YCT033001 AND AFTER (33) - BRAKES & CONTROLS

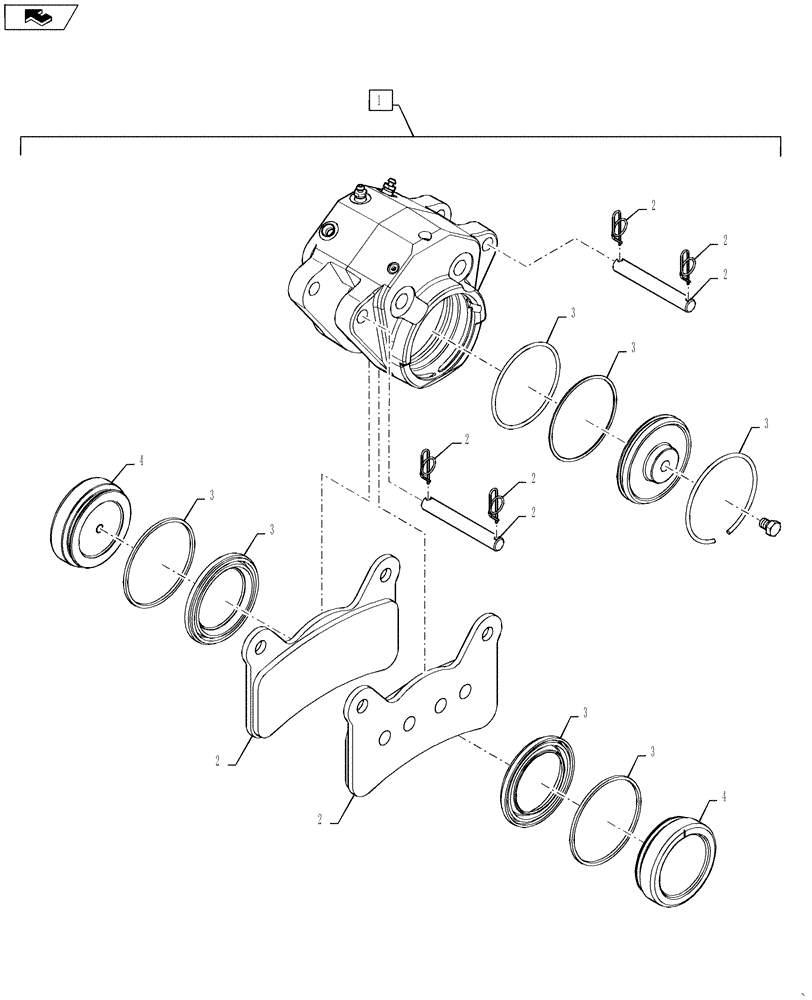

Схема запчастей Case IH TITAN 3030 - (33.300.03[03]) - BRAKE CALIPER ASSEMBLY, SN YCT033001 AND AFTER (33) - BRAKES & CONTROLS
2
2
2
3
4
3
2
2
3
home
3
2
3
1
3
2
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84465884

BRAKE CALIPER

Disc Brake

1шт.

2

84340350

SERVICE KIT

Includes Stator Pads, Stator Pins, and Rue Clips

1шт.

3

84340351

SERVICE KIT

Seal Kit, Includes Piston Boots, Square Rings, O-rings, Backup Rings, and C-rings

1шт.

4

84340352

SERVICE KIT

Piston Kit

1шт.

Выбрано товаров: 4
