(21.120.02) - AUXILIARY TRANSMISSION, TRANSFER CASE

Запчасти Case IH TITAN 3030 (21.120.02) - AUXILIARY TRANSMISSION, TRANSFER CASE (21) - TRANSMISSION

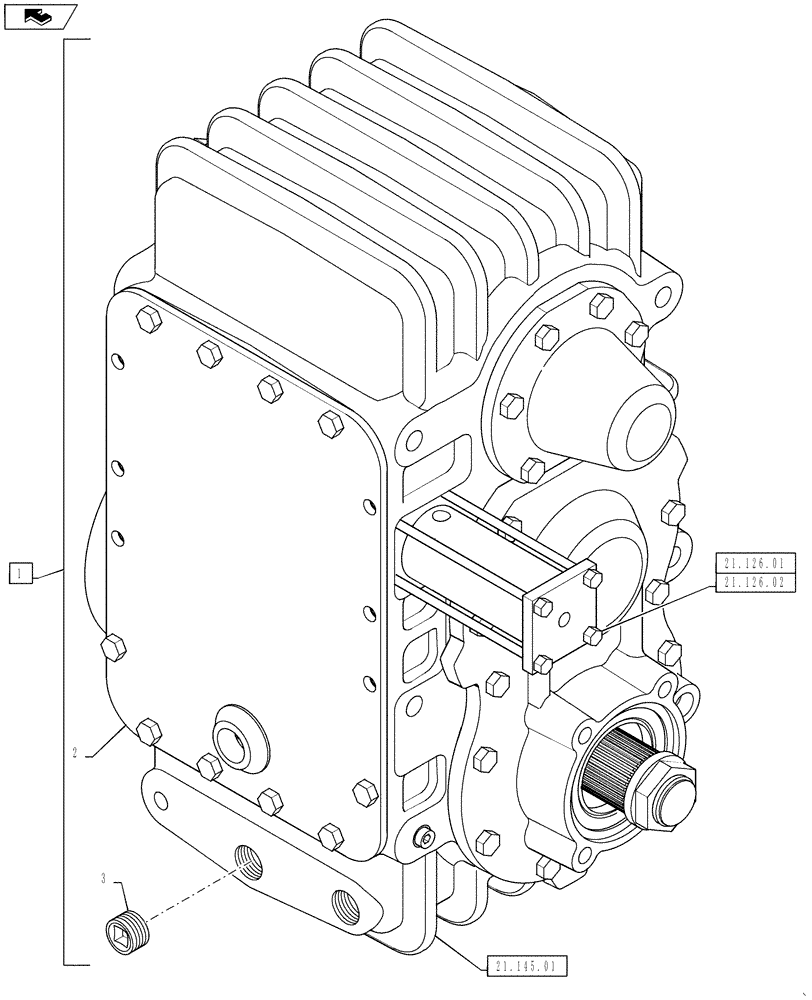

Схема запчастей Case IH TITAN 3030 - (21.120.02) - AUXILIARY TRANSMISSION, TRANSFER CASE (21) - TRANSMISSION
2
home
21.145.01
21.126.01
21.126.02
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84420642

TRANSFER BOX

Complete, 2 Speed Auxiliary Transmission, Includes Ref 2 - 3 and All Parts On Figures 21.126.01, 21.126.02, and 21.145.01

1шт.

84420642R

REMAN-TRANSMISSION

TITAN 3030, TITAN 3530 BOTH TIER 4, (2/12-)

1шт.

84420642C

CORE-TRANSMISSION

Return Number

1шт.

2

87577334

GASKET

Gasket, Side Cover

1шт.

3

BN2390129-035

PLUG

Magnetic, 3/4" NPT

1шт.

Выбрано товаров: 5
