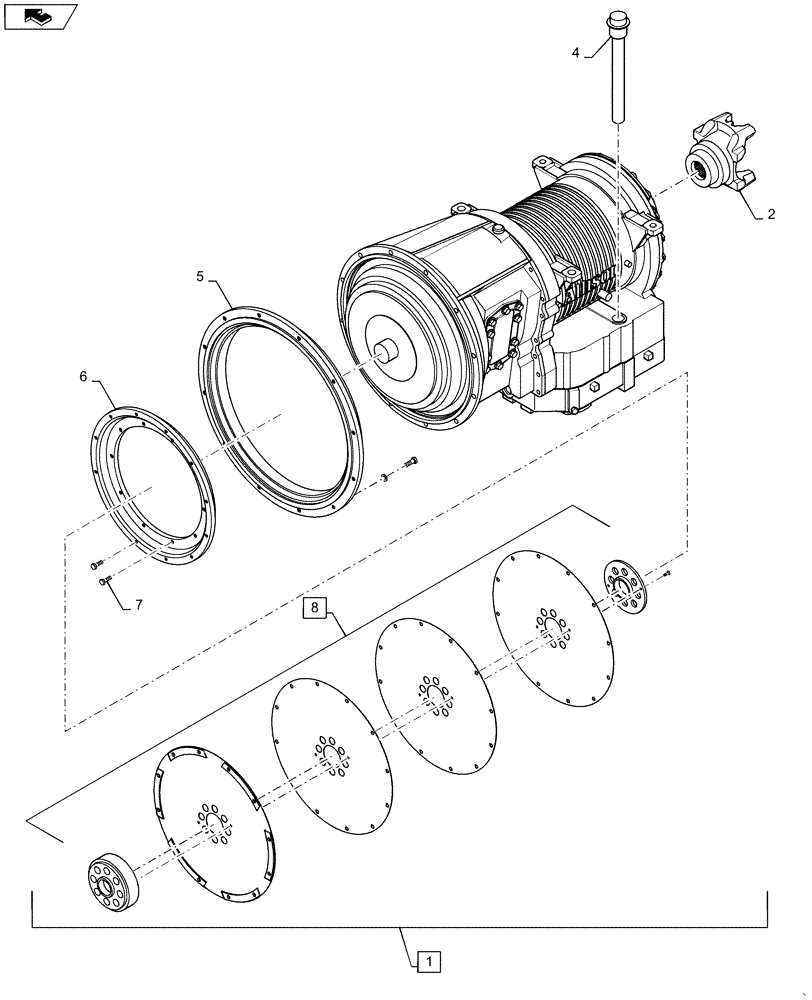

Запчасти Case IH TITAN 3030 (21.114.02) - TRANSMISSION, ALLISION 3000RDS (21) - TRANSMISSION

1

84169459

TRANSMISSION

3000RDS Allison, Includes Ref 2 - 10

1шт.

2

87269198

YOKE

Drive - Transmission

1шт.

3

87743577

SERVICE KIT

High Capacity Filter, Not Shown

1шт.

See Fig 21.100.01 For Service Parts

1шт.

4

BN2402071-005

DIPSTICK

Transmission

1шт.

5

84235920

ADAPTER

SAE #1 TO #2

1шт.

6

84235919

PLATE

Flex Adapter To Torque Converter

1шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

10шт.

8

84235918

PLATE

Flex, Kit

1шт.

9

84139504

SHIFTING UNIT

Transmission, Push Button, Not Shown

1шт.

10

84235917

MODULE

Transmission Control, Not Shown

1шт.

Refer To 55.640.01

1шт.
