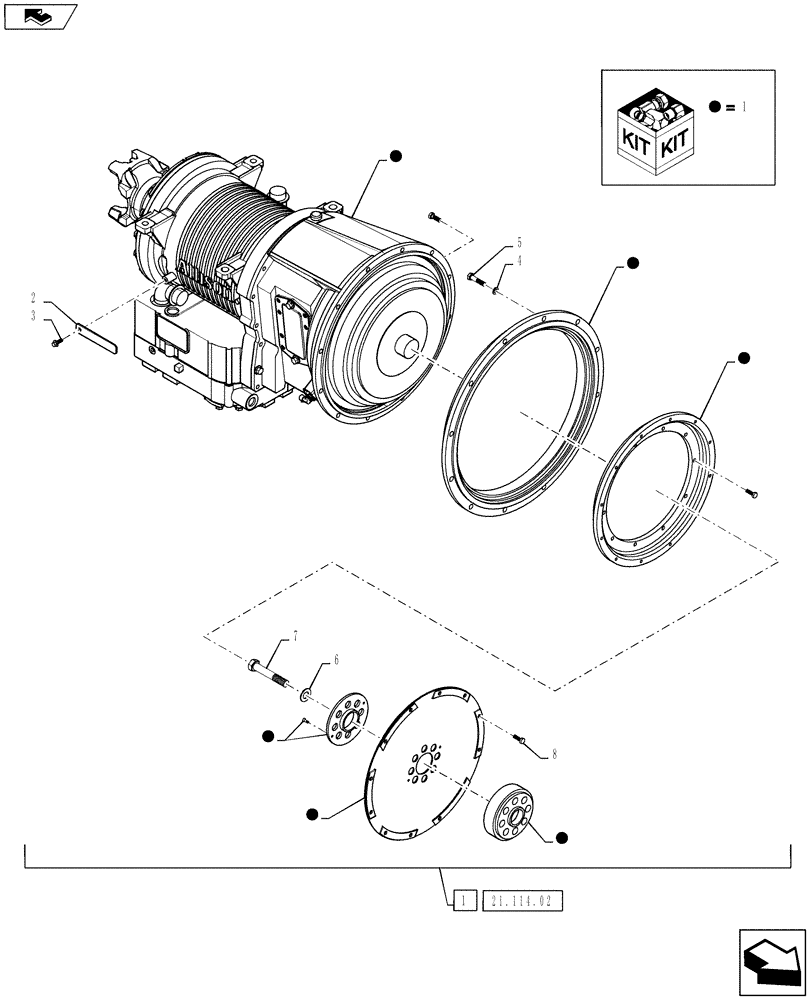

Запчасти Case IH TITAN 3030 (21.114.01) - TRANSMISSION PACKAGE (21) - TRANSMISSION

1

84169459

TRANSMISSION

3000RDS, FPT

1шт.

See Fig 21.114.02 For Service Parts

1шт.

2

BN315282

PLATE

Transmission Harness

1шт.

3

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

1шт.

4

86981495

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

10.5 X 18 X 1.6 MM CST DOR

12шт.

5

86980404

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

12шт.

6

84151586

WASHER,18.5mm ID x 35mm OD x 2mm Thk

18.5 X 35 X 2 HTS ZND

8шт.

7

15985431

BOLT,Hex, M18 x 1.5 x 110mm, Cl 10.9

8шт.

8

87342022

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

12шт.
