Запчасти Case IH TITAN 3030 (21.100.01) - HIGH CAPACITY FILTER KIT (21) - TRANSMISSION

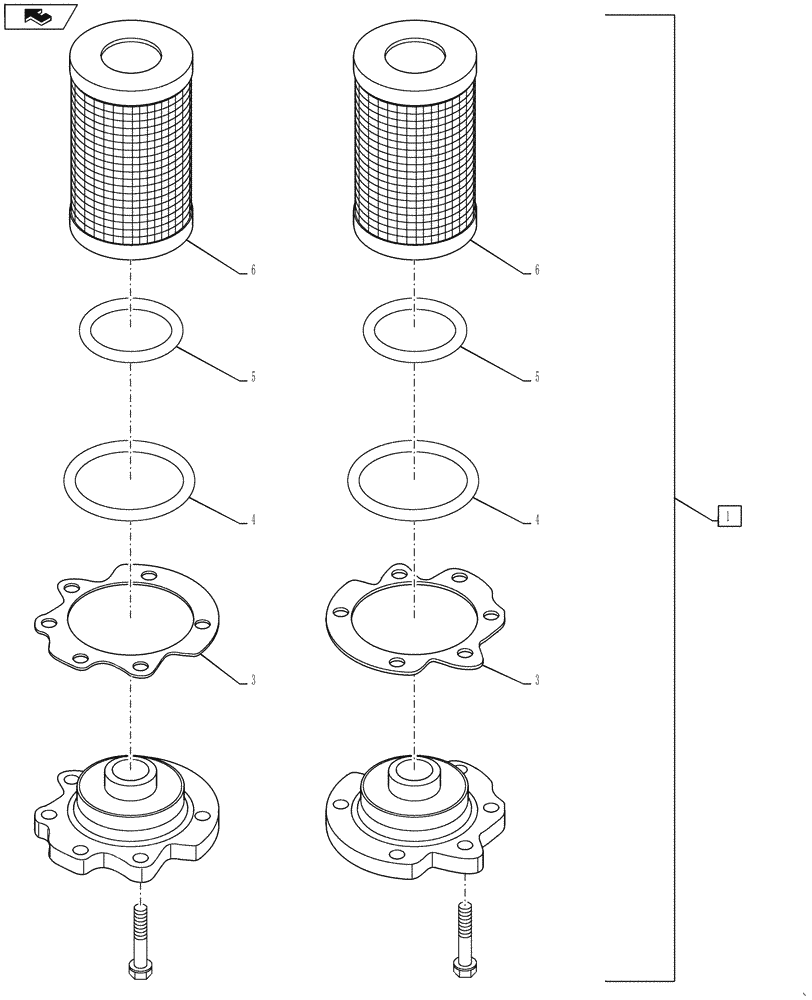

Схема запчастей Case IH TITAN 3030 - (21.100.01) - HIGH CAPACITY FILTER KIT (21) - TRANSMISSION
3
home
6
1
5
6
4
3
4
5

Артикул

Название

Примечание

Количество

1

87743577

SERVICE KIT

High Capacity Filter, Allison Transmission, Includes Ref 2 - 6

1шт.

2

87743637

O-RING

Packing, 16.3 ID, For Transmission Drain Plug, Not Shown

1шт.

3

87743597

GASKET

Filter Cove

2шт.

4

84170711

O-RING

Low Temp, New Style, Round Edge

2шт.

4

87743636

O-RING,88.6mm ID

O-Ring, 88.6, Old Style, Square Cut

2шт.

5

87743635

O-RING

Packing, 83.3

2шт.

6

87743579

ELEMENT

Filter

2шт.

Выбрано товаров: 7
