Запчасти Case IH TITAN 3030 (90.118.04) - HYDRAULIC TANK / WALKWAY MOUNTING, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

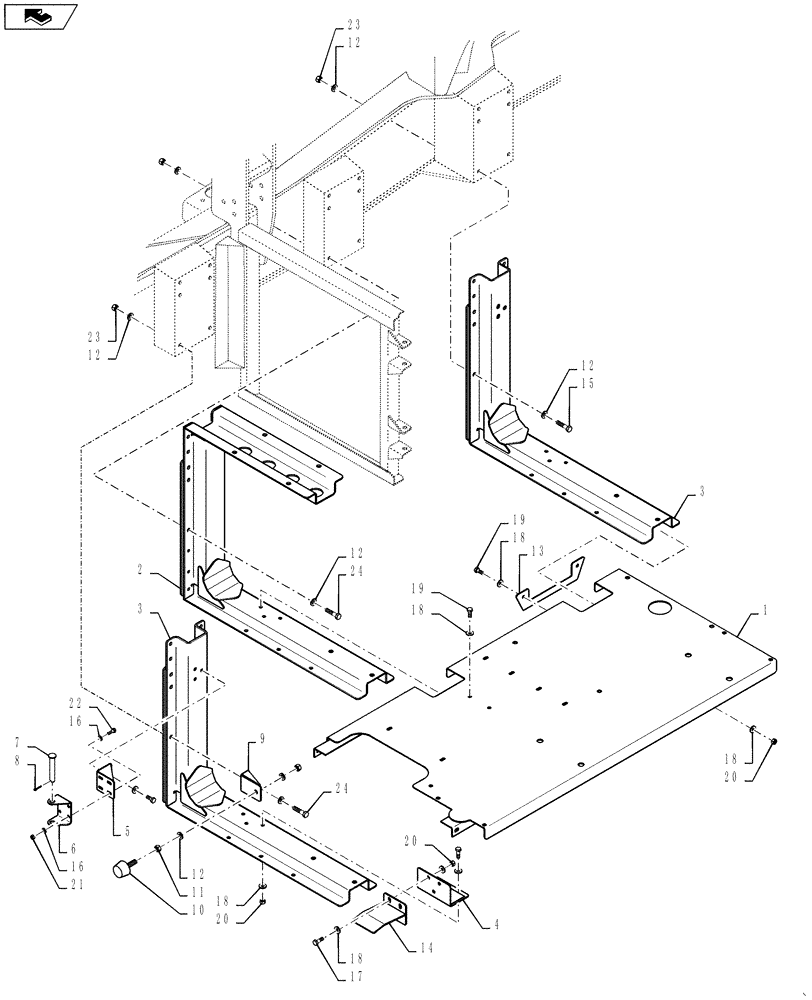

Схема запчастей Case IH TITAN 3030 - (90.118.04) - HYDRAULIC TANK / WALKWAY MOUNTING, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
19
20
20
18
2
18
8
15
23
4
3
11
5
12
13
16
17
12
18
18
24
18
7
20
12
22
6
10
12
1
24
23
16
14
21
3
19
9
home
12

Артикул

Название

Примечание

Количество

1

87266126

LOAD DECK

Lower

1шт.

2

344179A1

MOUNTING PLATE

Walkway

1шт.

3

87265534

MOUNTING PLATE

Walkway

2шт.

4

87265532

MOUNTING PLATE

Lower Striker

1шт.

5

87266143

MOUNT

Latch

1шт.

6

87266140

SUPPORT

Mount, Pin

1шт.

7

728-16100

CLEVIS PIN,M16 x 100

1шт.

8

BN1630425

PIN, SPLIT (COTTER)

PIN, COTTER 1/8 X 1

1шт.

9

87266675

MOUNTING PLATE

Bumper

1шт.

10

342650A1

BUMPER

Rubber

1шт.

11

87343666

NUT

1/2-13 GR 5 DOR

2шт.

12

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

38шт.

13

87266684

BRACKET, SUPPORTING

Mount, Lower Tank

1шт.

14

87265421

SUPPORT

Mount, PPE

1шт.

15

86980425

BOLT,Hex, M12 - 1.75 x 50mm, Cl 8.8, DOR

M12 - 1.75 x 50, 8.8, DOR

4шт.

16

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

8шт.

17

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

18

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

21шт.

19

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

7шт.

20

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

21

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

22

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

23

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

18шт.

24

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

14шт.

Выбрано товаров: 24
