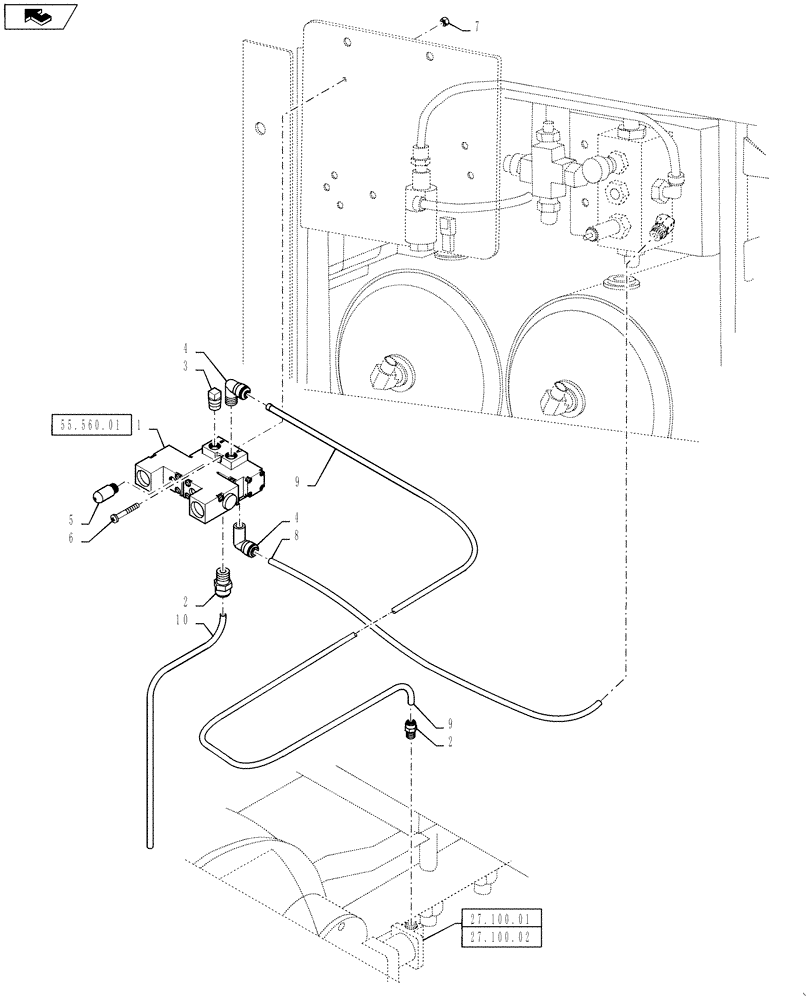

Запчасти Case IH TITAN 3030 (36.200.02) - 2-SPEED PNEUMATICS (36) - PNEUMATIC SYSTEM

1

87271289

PNEUMATIC VALVE

Complete With Harness

1шт.

See Fig 55.560.01 For Service Parts

1шт.

2

BN2399401

ADAPTER

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

3

217-504

DRAIN PLUG,Hex Hd, 1/4"-18, NPTF

1шт.

4

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

5

BN23041

MUFFLER

Air Valve, 1/8 NPT

2шт.

6

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

2шт.

7

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

8

BN2292089

AIR INTAKE TUBE

Synflex 1/4" Black, Bulk, Cut To Length Of 16.75"

1шт.

9

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

Air, Synflex 1/4" Green, Bulk, Cut To Length Of 260"

1шт.

10

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

Air, Synflex 1/4" Yellow, Bulk, Cut To Length Of 21"

1шт.
