Запчасти Case IH TITAN 3030 (36.100.03) - AIR COMPRESSOR GOVERNOR (36) - PNEUMATIC SYSTEM

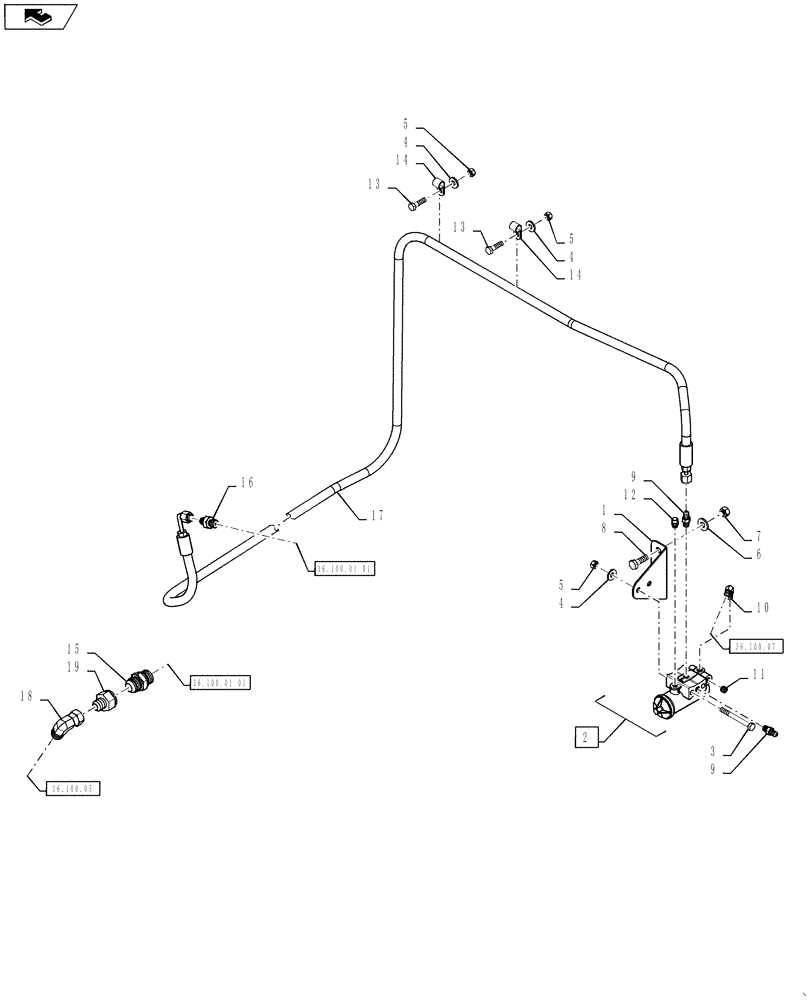

Схема запчастей Case IH TITAN 3030 - (36.100.03) - AIR COMPRESSOR GOVERNOR (36) - PNEUMATIC SYSTEM
4
9
10
8
2
16
14
6
9
14
12
15
1
19
home
4
11
36.100.01 01
5
36.100.01 01
36.100.07
36.100.05
18
5
4
5
13
7
13
17
3

Артикул

Название

Примечание

Количество

1

84174461

MOUNT

Governor

1шт.

2

BN2290733

GOVERNOR

Air, Includes Ref 11 and 20

1шт.

3

87341844

BOLT,Hex, M8 x 75mm, Cl 8.8

M8 x 75, 8.8, DOR

2шт.

4

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

8

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

9

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

2шт.

10

BN2290148

ELBOW

1/4" Tube x 1/8" NPTF

1шт.

11

BN1666155

PLUG

Allen Head 1/8"

3шт.

12

BN2293227

BREATHER

1/8" NPT

1шт.

13

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

14

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

15

84173221

ADAPTER

1-1/16" - 12 JIC x M26-1.5 ORB

1шт.

16

84173220

ADAPTER

7/16" - 20 JIC x M12-1.5 ORB

1шт.

17

84174463

HOSE

7/16" - 20 JIC Short Elbow x 7/16" - 20 JIC x 1/4" x 108" Long, Air, Governor To Air Compressor

1шт.

18

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

19

87301344

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

1шт.

20

BN2390706

GASKET

Governor, Not Shown

1шт.

Выбрано товаров: 20
