Запчасти Case IH TITAN 3030 (35.300.06) - HYDRAULIC TANK PLUGS, USED ON BASE CHASSIS ONLY (35) - HYDRAULIC SYSTEMS

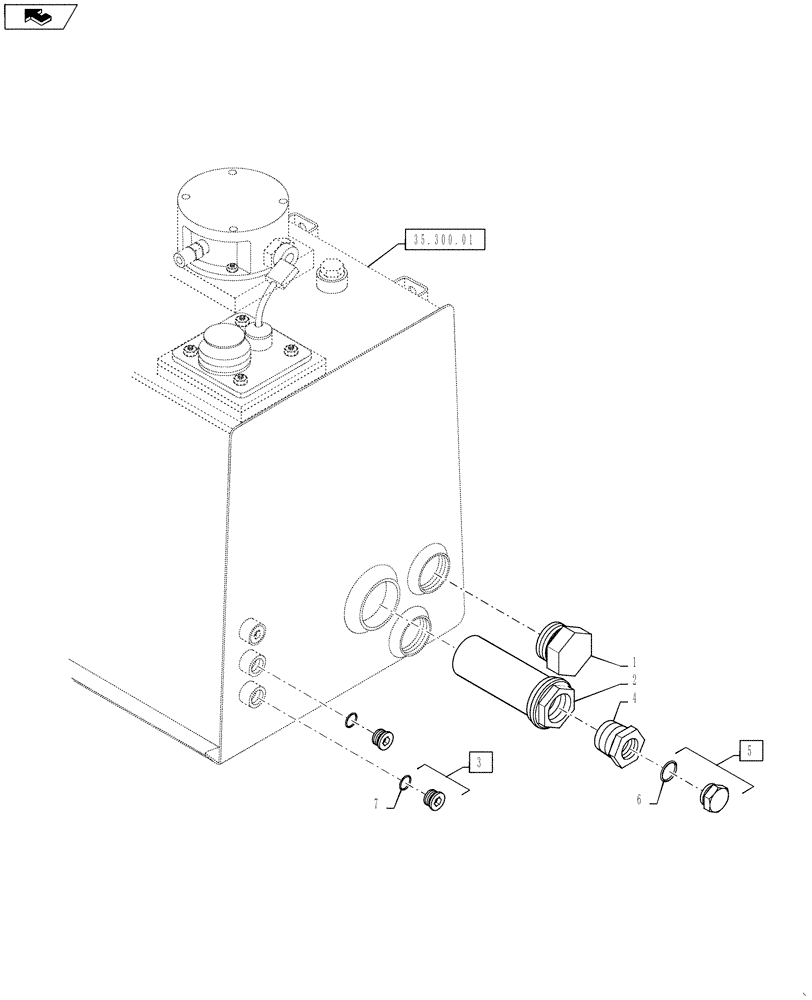

Схема запчастей Case IH TITAN 3030 - (35.300.06) - HYDRAULIC TANK PLUGS, USED ON BASE CHASSIS ONLY (35) - HYDRAULIC SYSTEMS
6
home
4
2
7
5
3
1
35.300.01

Артикул

Название

Примечание

Количество

1

BN304900

PLUG

2-1/2" - 12, SAE -32

1шт.

2

BN303527

FILTER STRAINER

3-3/8" - 12 x 2-1/2" - 12, 100 Mesh Stainless Steel

1шт.

3

218-5212

PLUG,1-1/16" - 12 ORB

Includes Ref 7

2шт.

4

BN318004

FITTING

2-1/2"-12 x 1-7/8"-12

1шт.

5

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

Includes Ref 6

1шт.

6

9626930

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1-7/8", ORB

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

2шт.

Выбрано товаров: 7
