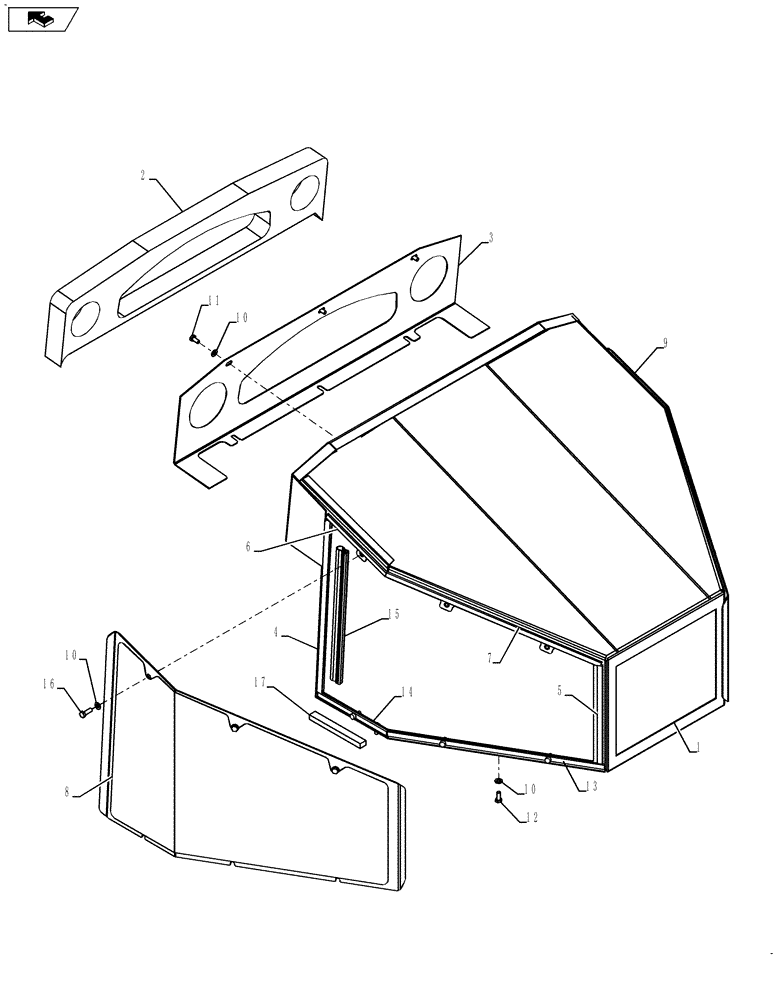

Запчасти Case IH TITAN 3020 (04-025[02]) - AIR SCEEN GROUP, TITAN 3520, SERIAL NUMBER YAT028759 AND AFTER Frame & Suspension

1

342420A1

SCREEN

Air Screen

1шт.

2

84355941

RUBBER SEAL

Hood Seal

1шт.

3

342289A1

PLATE

Rear Panel

1шт.

4

BN326049

FOAM

Screen Side, Bulk, Cut to length 494mm

2шт.

5

BN326049

FOAM

Screen Front, Bulk, Cut to length 274mm

2шт.

6

BN326049

FOAM

Screen Top, Bulk, Cut to length 204mm

2шт.

7

BN326049

FOAM

Screen Top, Bulk, Cut to length 535mm

2шт.

8

86986473

SCREEN

Curb Side, RH

1шт.

9

86986474

SCREEN

Road Side, LH

1шт.

10

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 X 17 X 2MM HTS DOR HDN

14шт.

11

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

12

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

13

86986477

FOAM

Lower Screen

2шт.

14

86986478

FOAM

Lower Screen

2шт.

15

86986479

SEAL

Clip On

2шт.

16

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

17

87598193

SEAL

Air Screen

2шт.
