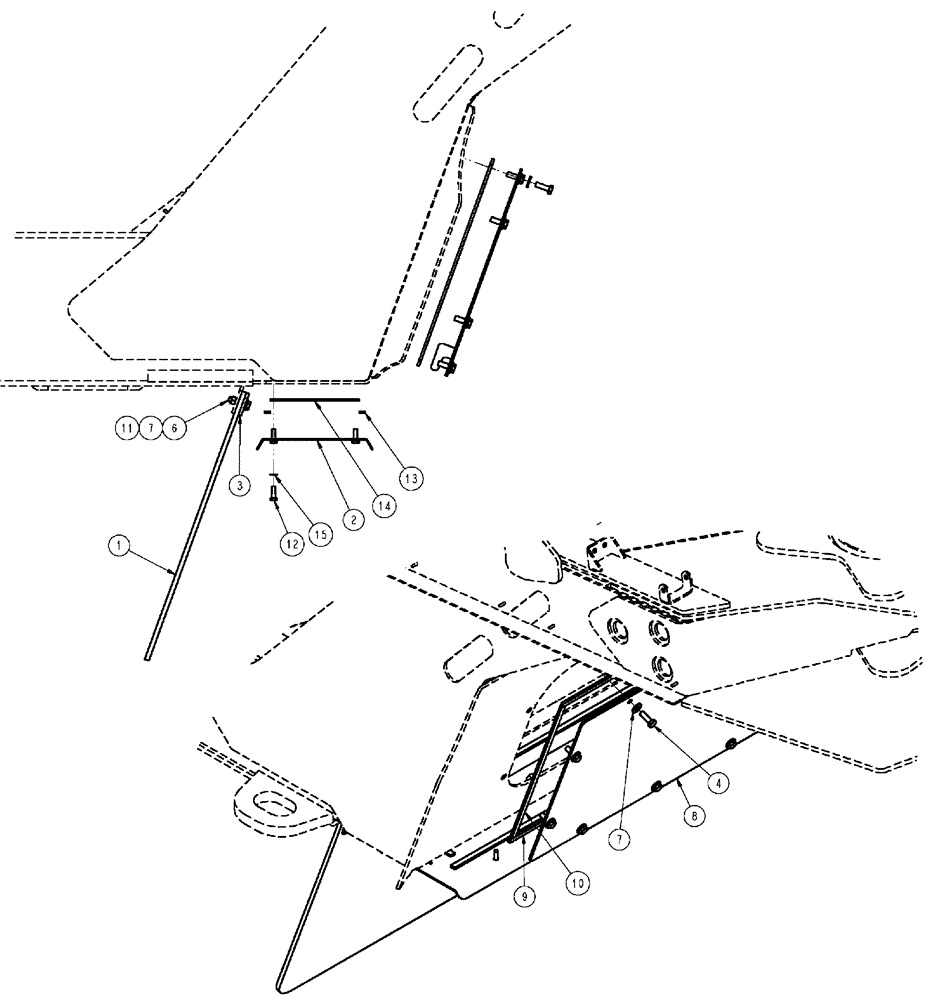

Запчасти Case IH TITAN 3020 (04-024) - FRONT MUD FLAP & RADIATOR ACCESS GROUP Frame & Suspension

1

87668024

MUDFLAP

24 X 40, CASE

1шт.

2

87267003

COVER

ACCESS, LOWER

1шт.

3

BN320352

STIFFENER

MUDFLAP, POLY

1шт.

4

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

10шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

7шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

17шт.

8

87272651

COVER

Radiator Access

1шт.

9

NS

NOT SERVICED

Foam, Horizontal

2шт.

10

NS

NOT SERVICED

Foam, Vertical

2шт.

11

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

7шт.

12

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

13

87267005

SEAL

LOWER, FRONT & BACK

2шт.

14

87267004

SEAL

LOWER, SIDE

2шт.

15

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.
