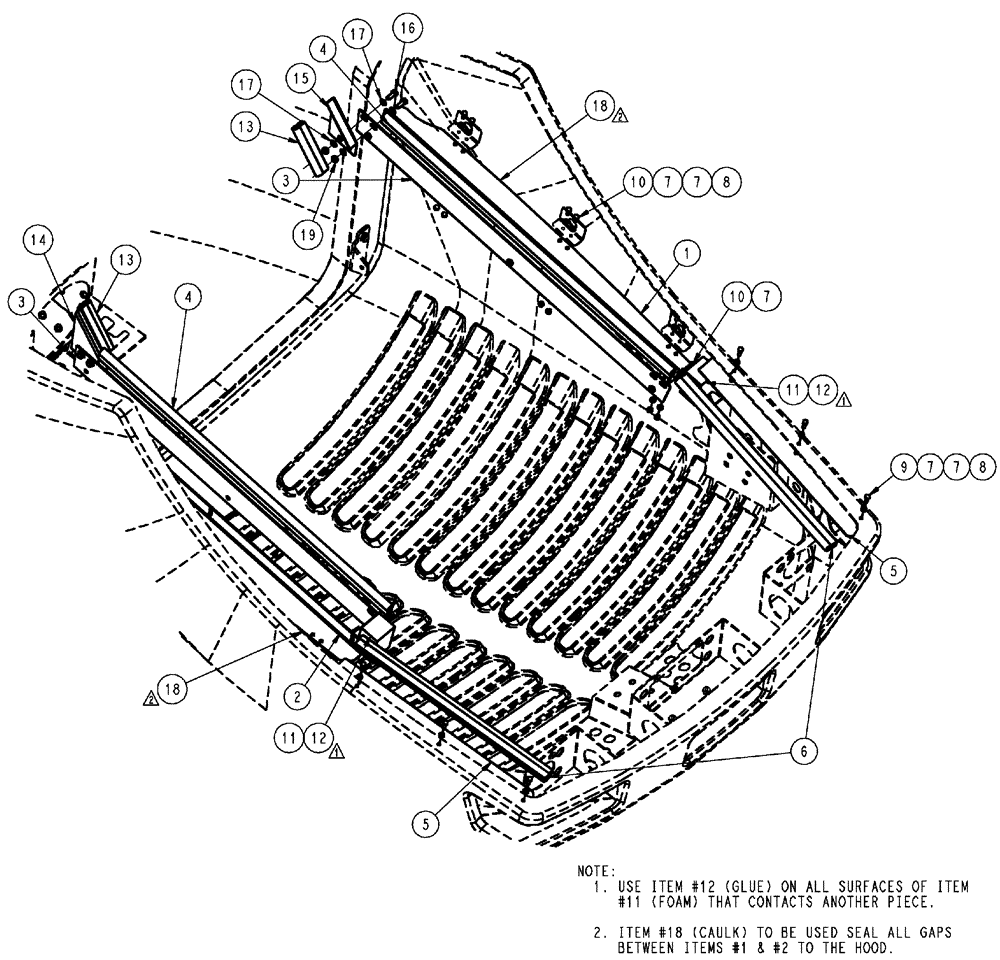

Запчасти Case IH TITAN 3020 (04-020) - BAFFLE GROUP, HOOD/AIR SCREEN/RADIATOR Frame & Suspension

1

87268825

BRACKET, SUPPORTING

MOUNT, SEAL PLATE, CS

1шт.

2

87268824

BRACKET, SUPPORTING

MOUNT, SEAL PLATE, RS

1шт.

3

87268823

MOUNTING PLATE

HOOD SEAL

2шт.

4

343856A1

SEAL

HOOD SIDE

2шт.

5

87267465

PLATE

SIDE SEAL

2шт.

6

F43117X

SEAL

formed rubber, adhesive-backed, bulk, 15 (9/16) x 31 (1-3/16) x 30480 mm (1200 inch) long

2шт.

7

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

42шт.

8

353308

NUT,M6 x 1.0, Cl 8

18шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

6шт.

10

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

18шт.

11

87268297

SEAL

FOAM, HOOD

2шт.

12

BN54039

ADHESIVE

Spray 18 oz

1шт.

13

S115658

WEATHERSTRIP

Bulk

2шт.

Cut 5.2" from bulk roll

1шт.

14

87269593

PLATE

HOOD SEAL

1шт.

15

87269592

PLATE

HOOD SEAL

1шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

17

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

18

NSS

NOT SOLD SEPARAT

BLK SEAM, SEAL 300 ML, Please Contact ASIST

1шт.

19

86528579

NUT,M8 x 1.25

4шт.
