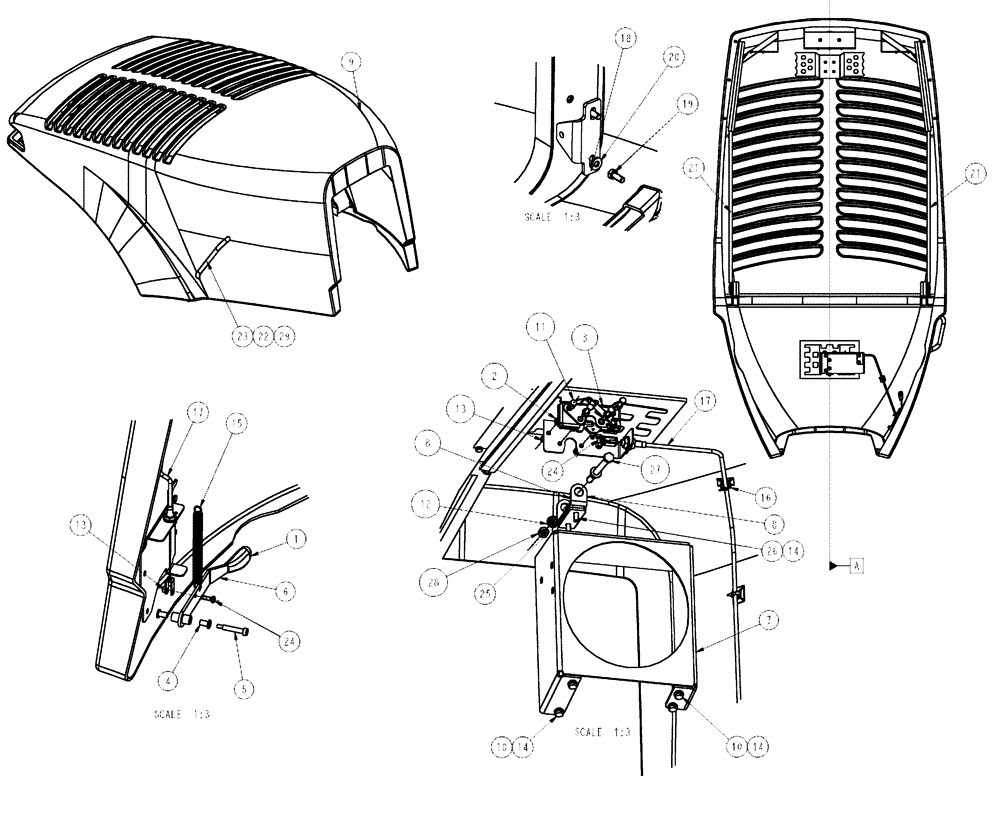

Запчасти Case IH TITAN 3020 (04-019) - COMPLETE ENGINE HOOD Frame & Suspension

1

134071A1

KNOB

Throttle Control

1шт.

2

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

1шт.

3

87550202

LATCH

HOOD, Start Year: 01-OCT-08

1шт.

3a

318159A1

LATCH

HOOD, Years: -01-OCT-08

1шт.

4

BN319151

BUSHING

5/16, SHLDER, NYLN

2шт.

5

BN325062

BOLT

M6-1, SHLDR, 8 X 40

1шт.

6

BN325453

LEVER

WLD, HOOD LATCH

1шт.

7

BN325462

SUPPORT

WLD, HOOD LATCH

1шт.

8

BN325463

SUPPORT

LATCH PIN

1шт.

9

BN325465

ENGINE HOOD

GLASSED

1шт.

10

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

86980364

BOLT,Hex, M6 - 1 x 40mm, Cl 8.8, DOR

M6-1 X 40, HH, 8.8 DOR

4шт.

12

87550203

GUIDE BUSHING

2шт.

13

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

6шт.

14

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2MM HTS DOR HDN

6шт.

15

L106237

SPRING

THROTTLE RETURN

1шт.

16

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

3шт.

17

BN325620

CABLE

PULL

1шт.

18

342450A1

PLATE

CYLINDER MOUNT

2шт.

19

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

20

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

21

NS

NOT SERVICED

Baffle Group, Hood/Air Screen

1шт.

See Fig 04-020

1шт.

22

BN29930

WASHER

12 ga 409 2" od x .34" id

2шт.

23

BN318538

HANDLE

GRAB, 18" SS

1шт.

24

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

25

87269591

PLATE

LATCH, SPACER

2шт.

26

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

27

86980412

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

2шт.

28

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

29

87343664

NUT

5/16-18

2шт.
