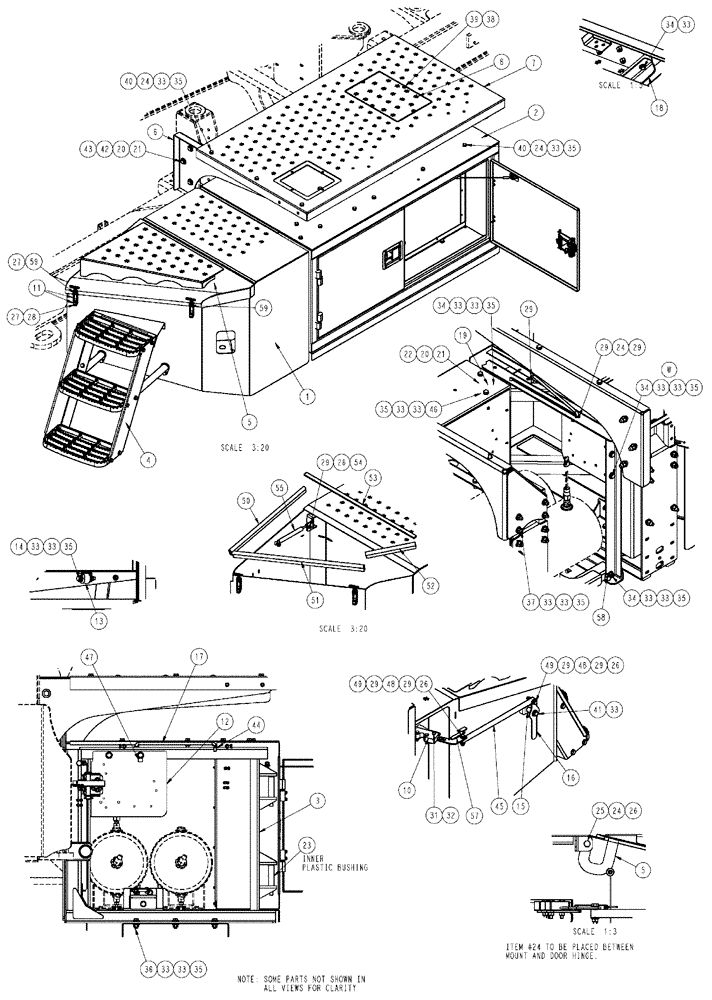

Запчасти Case IH TITAN 3020 (04-016) - WALKWAY GROUP, RS Frame & Suspension

1

87265423

BOX

RS, WALKWAY

1шт.

2

87265538

PLATE

TOOLBOX COVER

1шт.

3

87269637

MOUNTING PLATE

LADDER BOX

1шт.

4

NS

NOT SERVICED

Assembly, Front Access Ladder

1шт.

See Fig. 04-030

1шт.

5

344259A1

COVER PLATE

STORAGE

1шт.

6

87266043

SUPPORT

FRONT WALKWAY

1шт.

7

87266044

EXTENSION

Walkway, RS

1шт.

8

87267032

COVER

OIL FILTER

1шт.

10

87265437

LATCH

1шт.

11

BN309337

LATCH

Flexible Draw

2шт.

12

84129312

MOUNT

Solenoid Valves

1шт.

13

87268827

ROLLER

PLASTIC

1шт.

14

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

15

87265440

BUSHING

HANDLE

1шт.

16

87265441

HANDLE

PPE Box

1шт.

17

87265547

ROD

DOOR STOP

1шт.

18

87266685

SUPPORT

MOUNT, WALKWAY, CAB

2шт.

19

87266593

SUPPORT

ROD

1шт.

20

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

5шт.

21

100038

NUT,M12 x 1.75, Cl 8

5шт.

22

309308

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

2шт.

23

86986835

TUBE,12.10 mm ID x 20.40 mm OD x 78 mm L

Side Front

2шт.

24

BN50146

WASHER,3/8", Stainless

17шт.

25

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

26

86528579

NUT,M8 x 1.25

6шт.

27

840-1530

SCREW,Pan, M5 x 30mm, Cl 4.8

6шт.

28

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

6шт.

29

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

31

113-83

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5, Full Thd

4шт.

32

280129

NUT,1/4"-20

4шт.

33

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

66шт.

34

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

13шт.

35

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

37шт.

36

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.

37

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

8шт.

38

BN50138

WASHER,1/4", SS

4шт.

39

BN315199

SCREW,M6 x 20mm, SST

M6 1 X 20, BSH, SS

4шт.

40

BN322388

SCREW,Hex, M10 x 1.5 x 30mm, SST

M10 1.5 X 30, HH, SS

14шт.

41

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

1шт.

42

BN50595

WASHER,1/2", Stainless

3шт.

43

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

3шт.

44

BN71006

COTTER PIN

1/8", #11

2шт.

45

87265442

TUBE,13.50 mm ID x 19.10 mm OD x 392 mm L

PUSH

1шт.

46

86500689

NUT,M10 x 1.5, Cl 10

1шт.

47

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

48

BN50142

WASHER,5/16", Stainless Steel

2шт.

49

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

50

87265432

SEAL

BULB

1шт.

51

87265433

SEAL

BULB

1шт.

52

87265434

SEAL

BULB

1шт.

53

87269585

SEAL

Step Cover

1шт.

54

86013811

STUD

BALL

2шт.

55

87265558

CYLINDER

GAS

1шт.

57

BN30670

SPRING

3/8" OD X 2" (304 SS)

1шт.

58

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

59

86585710

SCREW,Phillips Drive, Pan HD, M5 x 25mm, Cl 4.8

2шт.

60

86986699

LIGHT

Amber Side Marker Lamp, Not Shown, Located on the corner of Ref 1

1шт.
