Запчасти Case IH TITAN 3020 (04-015) - WALKWAY GROUP, CS Frame & Suspension

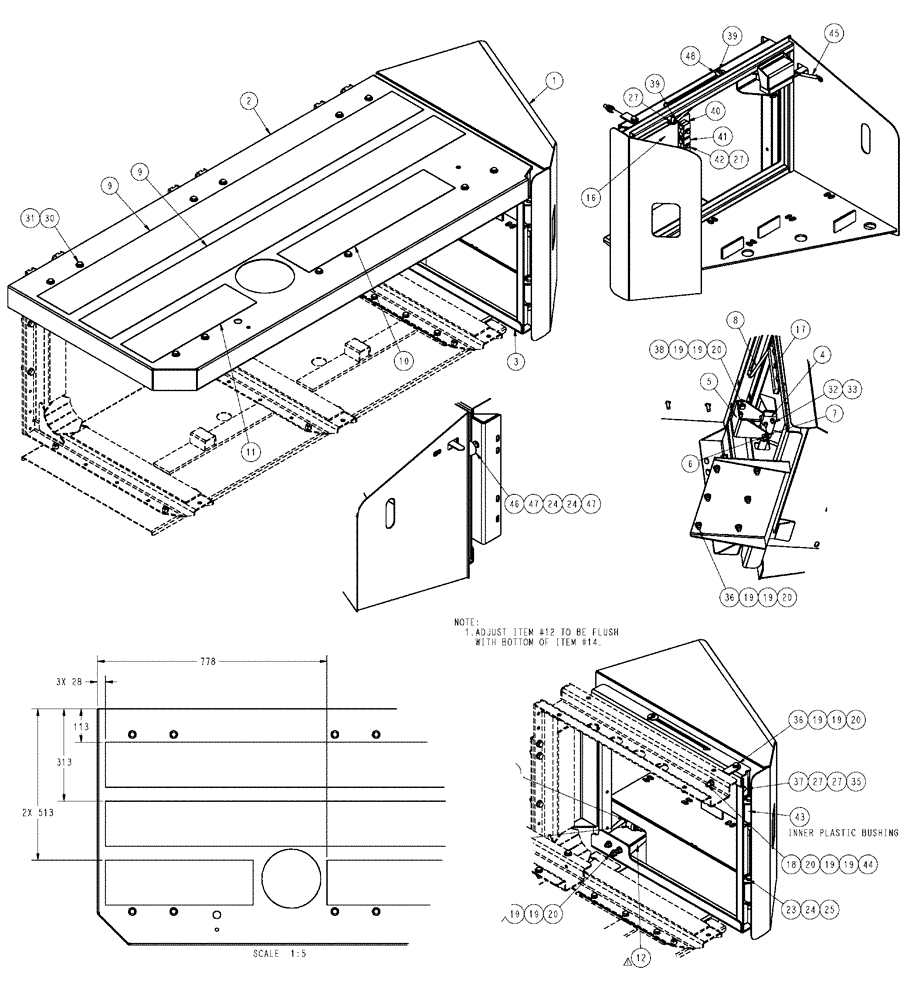

Схема запчастей Case IH TITAN 3020 - (04-015) - WALKWAY GROUP, CS Frame & Suspension
1
3
2
36
31
19
20
5
47
27
32
19
40
47
19
19
36
44
20
10
19
8
45
24
20
39
33
24
20
20
4
18
27
19
17
19
24
27
6
25
19
39
16
23
38
9
19
43
7
41
19
9
27
37
12
46
35
48
42
30
1

Артикул

Название

Примечание

Количество

1

87265530

TOOL BOX

FRONT, CS

1шт.

2

87267028

PLATE

TOP FUEL TANK

1шт.

3

87265535

MOUNTING PLATE

BATTERY BOX

1шт.

4

87268834

LATCH

Battery Box

1шт.

5

343356A1

BRACKET, SUPPORTING

MOUNT, PIN

1шт.

6

728-16100

CLEVIS PIN,M16 x 100

1шт.

7

BN1630425

PIN, SPLIT (COTTER)

PIN, COTTER 1/8 X 1

1шт.

8

87265547

ROD

DOOR STOP

1шт.

9

87266040

WALKWAY

CATWALK Safety, Deck Plate

2шт.

10

87266041

WALKWAY

CATWALK Safety, Deck Plate

1шт.

11

87266042

WALKWAY

CATWALK Safety, Deck Plate

1шт.

12

87268832

MOUNTING PLATE

DOOR SUPPORT

1шт.

13

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

14

87268827

ROLLER

PLASTIC

1шт.

16

87266691

MOUNTING PLATE

BATTERY CABLES

1шт.

17

87266589

FOAM

Battery Cable, Plate

1шт.

18

87266592

SUPPORT

ROD

1шт.

19

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

28шт.

20

100037

LOCK NUT,M10 x 1.5, Cl 8

14шт.

23

309308

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

2шт.

24

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

25

100038

NUT,M12 x 1.75, Cl 8

2шт.

27

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

30

BN50146

WASHER,3/8", Stainless

12шт.

31

BN322388

SCREW,Hex, M10 x 1.5 x 30mm, SST

M10 1.5 X 30, HH, SS

12шт.

32

113-83

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5, Full Thd

4шт.

33

280129

NUT,1/4"-20

4шт.

35

86528579

NUT,M8 x 1.25

2шт.

36

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

37

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

38

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

39

BN71006

COTTER PIN

1/8", #11

2шт.

40

87266692

PIPE CLAMP

DUAL, 16MM

3шт.

41

BN311653

PLATE

TOP DUAL, SIZE 2

3шт.

42

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

3шт.

43

86986835

TUBE,12.10 mm ID x 20.40 mm OD x 78 mm L

Side Front

2шт.

44

86500689

NUT,M10 x 1.5, Cl 10

1шт.

45

BN30670

SPRING

3/8" OD X 2 (304 SS)

1шт.

46

342650A1

BUMPER

RUBBER

1шт.

47

280431

NUT,1/2"-13, G5

2шт.

48

86981677

WASHER,11mm ID x 30mm OD x 2.5mm Thk

1шт.

Выбрано товаров: 41
