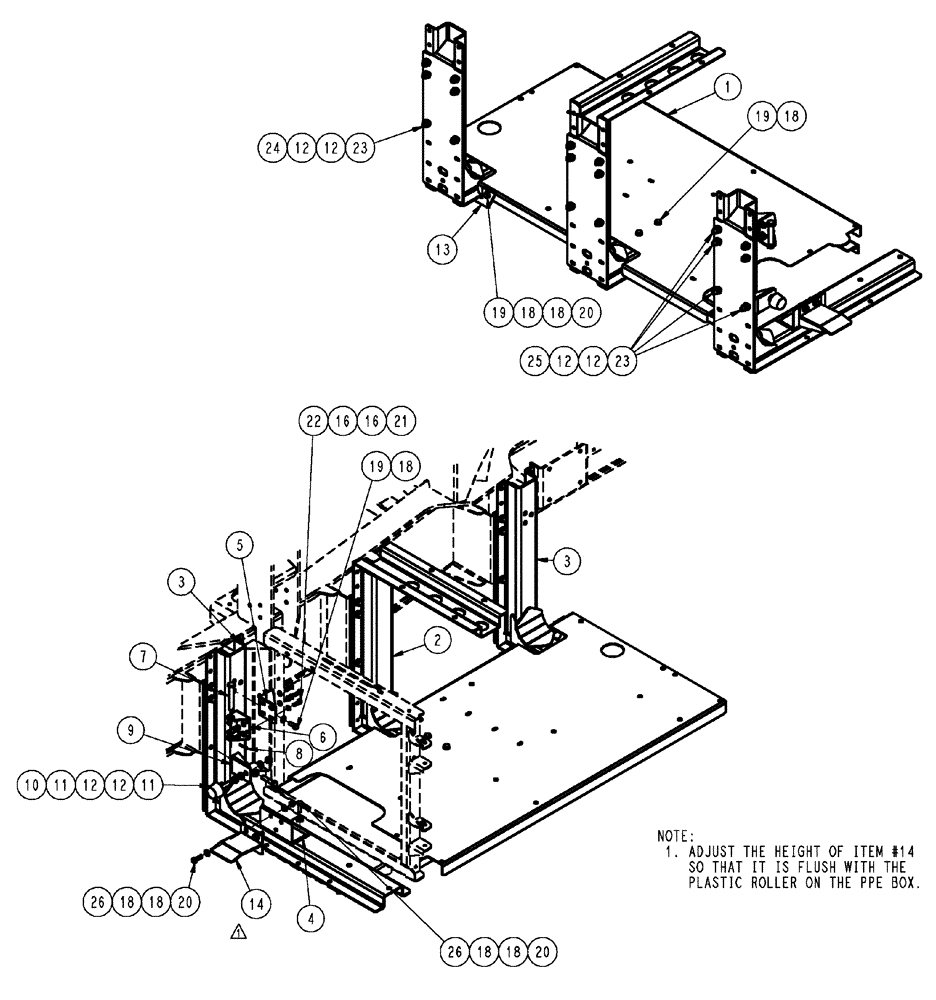

Запчасти Case IH TITAN 3020 (04-014) - TANK/WALKWAY GROUP, RS Frame & Suspension

1

87266126

LOAD DECK

Lower

1шт.

2

344179A1

MOUNTING PLATE

walkway

1шт.

3

87265534

MOUNTING PLATE

Walkway

2шт.

4

87265532

MOUNTING PLATE

Lower Striker

1шт.

5

87266143

MOUNT

LATCH

1шт.

6

87266140

SUPPORT

Mount, Pin

1шт.

7

728-16100

CLEVIS PIN,M16 x 100

1шт.

8

BN1630425

PIN, SPLIT (COTTER)

PIN, COTTER 1/8 X 1

1шт.

9

87266675

MOUNTING PLATE

Bumper

1шт.

10

342650A1

BUMPER

RUBBER

1шт.

11

280431

NUT,1/2"-13, G5

2шт.

12

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

38шт.

13

87266684

BRACKET, SUPPORTING

MOUNT, LOWER TANK

1шт.

14

87265421

SUPPORT

Mount, PPE

1шт.

16

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

18

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

21шт.

19

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

7шт.

20

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

2

86528579

NUT,M8 x 1.25

4шт.

22

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

2

100038

NUT,M12 x 1.75, Cl 8

18шт.

24

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

14шт.

25

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

26

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.
