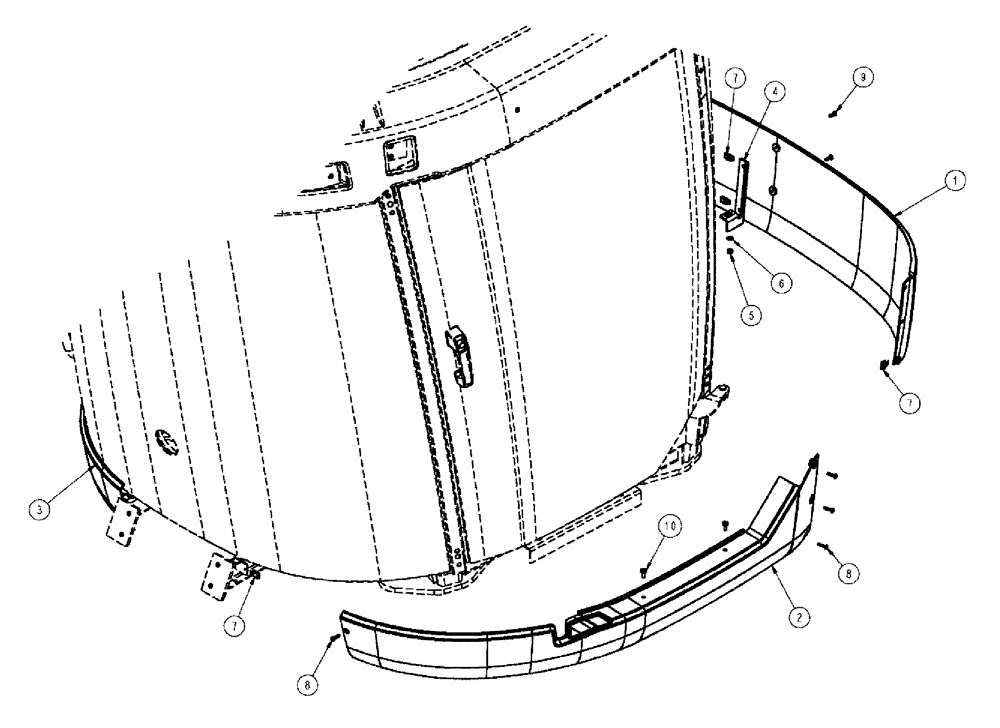

Запчасти Case IH TITAN 3020 (01-006) - CAB SKIRT GROUP (10) - CAB

1

341236A3

SKIRT

rear

1шт.

2

BN323563

SKIRT

CAB, L.H.

1шт.

3

87357991

SKIRT COVER

cab, RH

1шт.

4

341574A3

BRACKET

SKIRT

1шт.

5

86528579

NUT,M8 x 1.25

1шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

7

404882A1

SPRING NUT,M6

nut, M6 spring, wide range

6шт.

8

86511831

SCREW,Phillips Drive, Pan HD, M6 x 25mm

8шт.

9

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

2шт.

10

840-2820

SCREW,Pan, M8 x 20mm, Cl 4.8

4шт.
