Запчасти Case IH TITAN 3020 (01-001) - CAB ASSY, FLOATER DLX (10) - CAB

0

87755440

CAB

Assembly, Floaters, Deluxe

1шт.

1

87363105

CAB EXTERIOR TRIM GROUP

1шт.

See Fig. 01-003

1шт.

2

87755450

PACKAGE, 4WD CAB ELECTRICAL

1шт.

See Fig. 01-010

1шт.

3

360828A1

CONSOLE

Assembly, Overhead

1шт.

See Fig. 01-013

1шт.

4

NS

NOT SERVICED

Control, Floater Steering

1шт.

See Fig. 01-014

1шт.

5

NS

NOT SERVICED

PACKAGE, FRONT VISOR

1шт.

See Fig. 01-004

1шт.

6

87645630

HVAC ATC ASSEMBLY

1шт.

See Fig. 01-014

1шт.

7

NS

NOT SERVICED

Package, Seat, Operator

1шт.

See Fig. 01-046

1шт.

8

NS

NOT SERVICED

Wiper, Wide Front Group

1шт.

See Fig. 01-021

1шт.

9

360825A1

COVER

GROUP, INTERIOR TRIM DELUXE

1шт.

See Fig. 01-022

1шт.

10

87271888

INST ASSY, ICU2, SPX/FLX

1шт.

See Fig. 01-048

1шт.

11

NS

NOT SERVICED

Control, Floater Service Brake

1шт.

See Fig. 01-023

1шт.

12

NS

NOT SERVICED

Package, Cab Exterior

1шт.

See Fig. 01-002

1шт.

13

184001A1

CONSOLE

Front

1шт.

See Fig. 01-025

1шт.

14

359221A1

DOOR

LH Cab

1шт.

See Fig. 01-026

1шт.

15

87423388

WINDOW/A, RH

1шт.

See Fig. 01-028

1шт.

16

NS

NOT SERVICED

Glass Mounting Group, Laminated

1шт.

See Fig. 01-029

1шт.

17

87497064

SPARE PART

PACKAGE, BENSON RADIO GROUP

1шт.

See Fig. 01-030

1шт.

18

87342948

ASSY, STEERING AND POD ASSY

1шт.

See Fig. 01-032

1шт.

19

NS

NOT SERVICED

PACKAGE, VISOR REAR

1шт.

See Fig. 01-036

1шт.

20

NS

NOT SERVICED

Throttle Group, Floater

1шт.

See Fig. 01-034

1шт.

21

440049A1

LIGHT

Non Install Work

1шт.

See Fig. 01-037

1шт.

22

87652368

INSTRUCTIONAL SEAT

INSTRUCTIONAL SEAT-I CLOTH

1шт.

See Fig. 01-043

1шт.

23

NS

NOT SERVICED

Decal, Cab Group

1шт.

See Fig. 09-008

1шт.

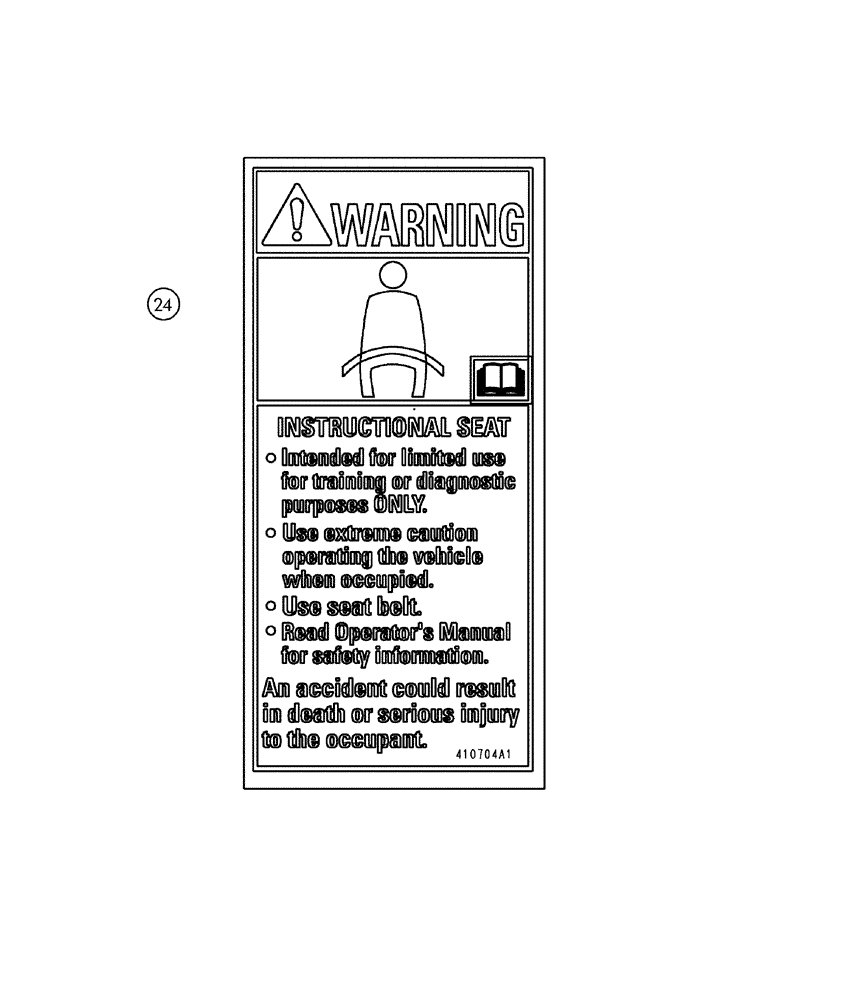

24

410704A1

WARNING DECAL

Instructional Seat

1шт.
