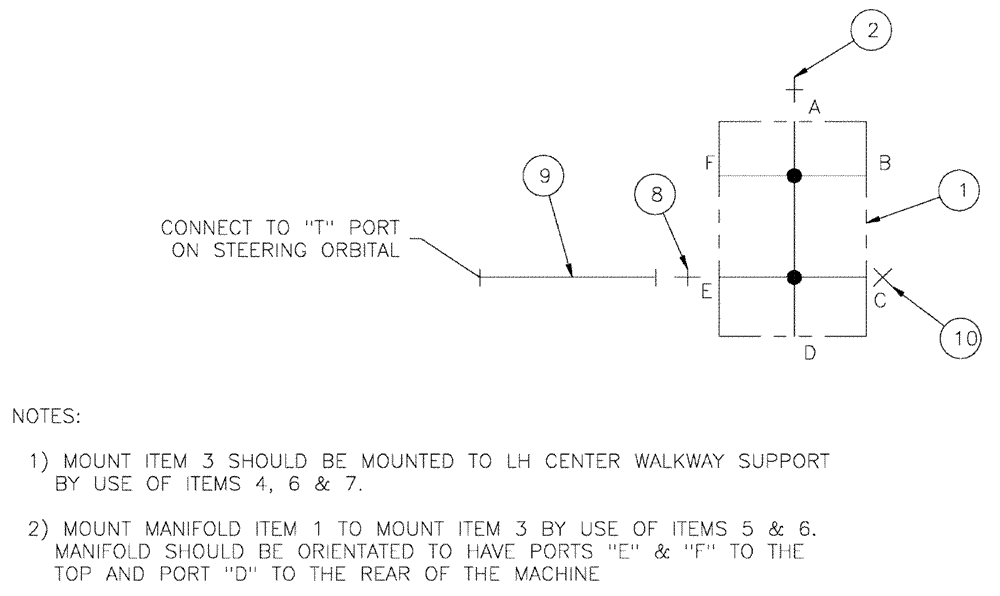

Запчасти Case IH TITAN 3020 (06-010) - HYDRAULIC MANIFOLD GROUP (07) - HYDRAULICS

1

BN302877

MANIFOLD

OIL RETURN

1шт.

2

BN305058

FITTING

20MOR 24MB

1шт.

3

BN324125

BRACKET, SUPPORTING

MOUNT, OIL MANIFOLD

1шт.

4

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

5

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

6

86528579

NUT,M8 x 1.25

6шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

8

BN302650

FITTING

8 MOR-8 MB

1шт.

9

342819A1

HOSE

8 x 75"

1шт.

10

BN446025

PLUG

HEX, O-RING 3/4-16

1шт.
