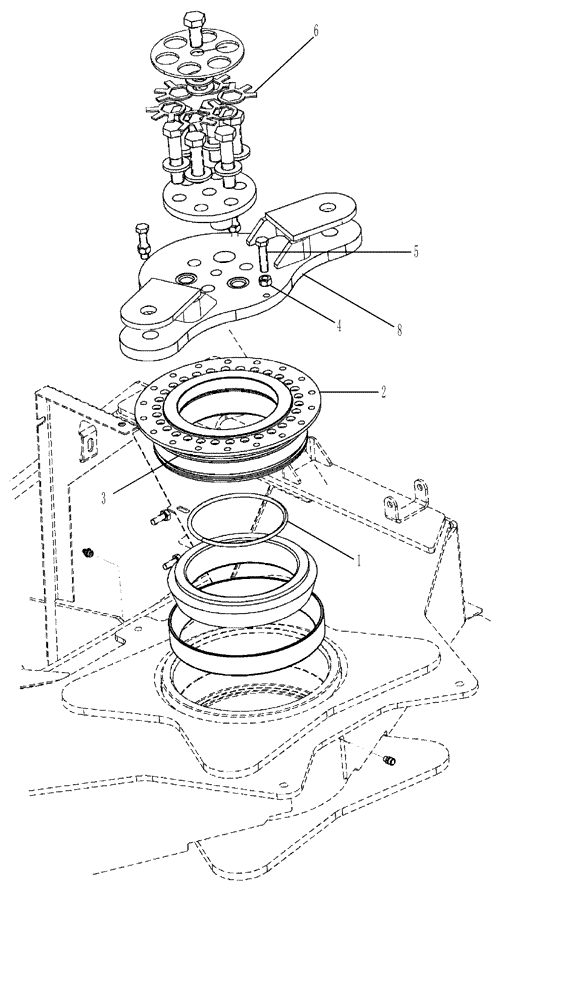

Запчасти Case IH TITAN 3020 (04-010[02]) - DIA KIT, KINGPIN NUT ASSEMBLY Frame & Suspension

0

87616994

SERVICE KIT

Kingpin Nut Assy.

1шт.

Includes Ref. 1 - 8

1шт.

1

87033152

O-RING,5.85" ID x 6.4" OD x 0.275"

103X5.875" CL 6

1шт.

2

87602693

BEARING LOCK NUT,162 mm ID x 300 mm OD x 66 mm

1шт.

3

87605318

O-RING,8.975" ID x 9.525" OD x 0.275"

9.0 X 9.5 X .275 CL 5

2шт.

4

87344210

NUT

M12 10.9 DOR

3шт.

5

87342144

BOLT,Hex, M12 x 50mm, Cl 8.8

M12 X 50 FULL 8.8 DOR

3шт.

6

87392700

LOCK WASHER

Retainer

6шт.

7

87617651

SPECIAL TOOL

Drill Template, (Not Shown)

1шт.

8

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2"

4шт.
