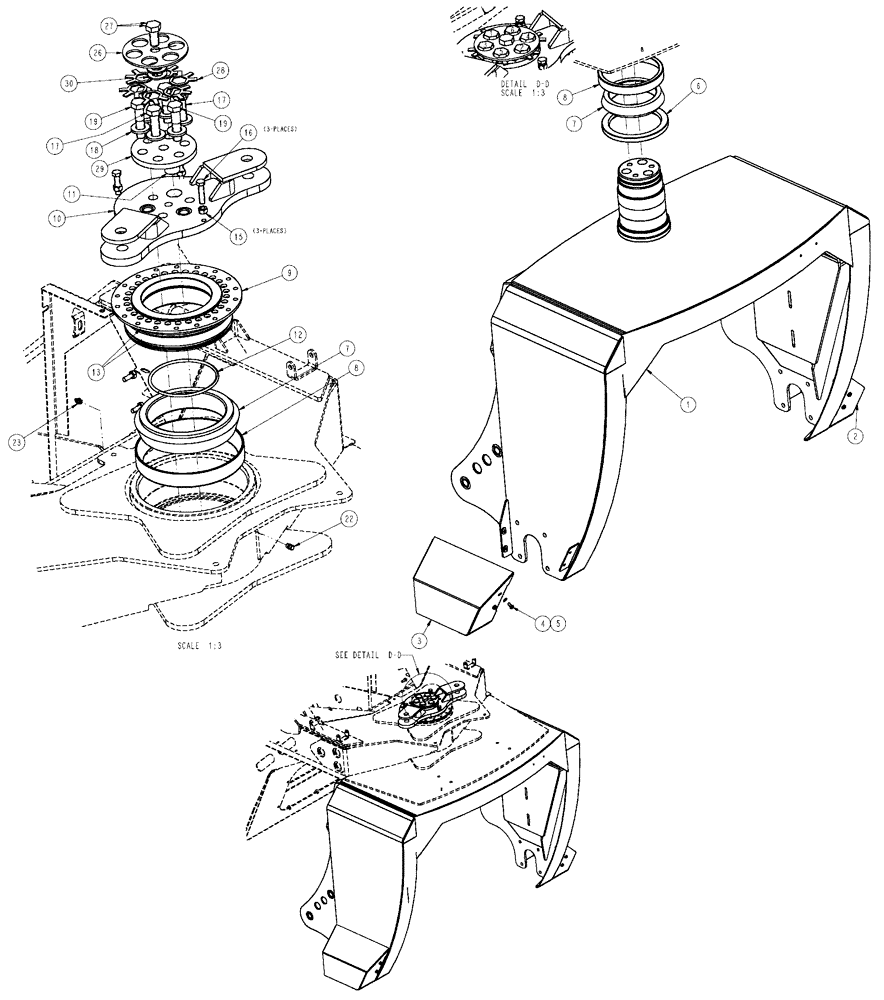

Запчасти Case IH TITAN 3020 (04-010[01]) - FRONT FORK GROUP Frame & Suspension

1

87266355

FORK

Steering

1шт.

2

BN324651

COVER ASSY

AXLE, RS

1шт.

3

BN324650

COVER ASSY

AXLE, CS

1шт.

4

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

5

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

8шт.

6

BN323425

OIL SEAL

OIL, 7.75 X 10 X 0.75

1шт.

7

90-7762T1

TAPERED BEARING

Cone, JM736149

2шт.

8

90-7761T1

BEARING CUP

JM736110

2шт.

9

87602693

BEARING LOCK NUT,162 mm ID x 300 mm OD x 66 mm

Nut, Fork

1шт.

10

87603098

ARM

Steering

1шт.

11

BN324111

BUSHING

1.38 X 1.5 X .81

3шт.

12

87033152

O-RING,5.85" ID x 6.4" OD x 0.275"

#436, CL 6, NBR

1шт.

13

87605318

O-RING,8.975" ID x 9.525" OD x 0.275"

9.0 X 9.5 X .275 447 CL 5

2шт.

14

303401A1

PLUG

20 mm hole with center pull tab

1шт.

15

87344210

NUT

Hex, M12 CL10.9

3шт.

16

87342144

BOLT,Hex, M12 x 50mm, Cl 8.8

M12 X 50, FULL, 8.8

3шт.

17

87394757

BOLT,Hex, M20 x 70mm, Cl 10.9

Hex, M20 x 70 CL10.9 Full Thrd

3шт.

18

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

6шт.

19

87342001

BOLT,Hex, M20 x 90, Class 10.9, DOR

3шт.

20

331-37

SPARE PART

FLUID, 1 lb. Lithium #2 grease

1шт.

21

BN55077

ANTISEIZE

COMPOUND

1шт.

22

BN2293227

BREATHER

301370 1/8" NPT

1шт.

23

BN10151

LUBE NIPPLE

1/8"-27 Straight

1шт.

26

87392705

RING

Retainer

1шт.

27

86980457

BOLT,Hex, M20 x 40mm, Cl 8.8

M20 2.5 X 40, HH, 8.8, DOR

1шт.

28

87392700

LOCK WASHER

Retainer

6шт.

29

87392699

STIFFENER

Plate, 12.7 mm

1шт.

30

87366

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

2шт.

31

87616994

SERVICE KIT

Kingpin Nut Assy.

1шт.

See Fig. 04-010(02)

1шт.
