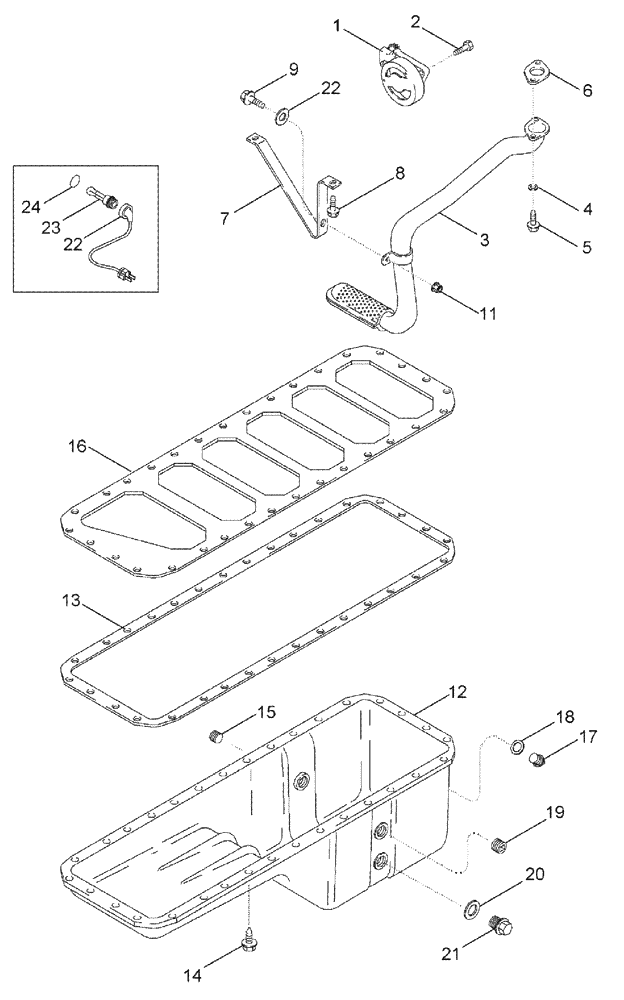

Запчасти Case IH TITAN 3020 (02-043) - OIL PUMP AND OIL PAN HEATER KIT (01) - ENGINE

1

J991123

ENGINE OIL PUMP

1шт.

1

JR991123

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1

JC991123

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 X 30

4шт.

3

J944264

TUBE,1.25" OD

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

87447959

GASKET,1.2mm Thk

Oil Suction

1шт.

7

J927611

BRACKET

1шт.

8

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

2шт.

9

87015862

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

10

J910960

WASHER

1шт.

11

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

12

87357469

ENGINE OIL PAN

1шт.

13

87308050

GASKET,0.95mm Thk

Oil Pan

1шт.

14

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

32шт.

15

J924148

PLUG,M22 x 1.5

M22

1шт.

16

NSS

NOT SOLD SEPARAT

Order A77679, Incl Ref 6, 13, 18, 20

1шт.

17

J924147

PLUG,M18 x 1.5

M18

1шт.

18

J920773

SEALING WASHER

1шт.

19

J924147

PLUG,M18 x 1.5

M18

1шт.

20

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

21

86637727

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

1шт.

21a

A77580

SERVICE KIT

Oil Pan Heater, Engine Oil

1шт.

Includes Refs. 22 & 23

1шт.

22

J906388

HEATING ELEMENT

1шт.

23

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

23a

A77666

SERVICE KIT

Heater, Engine Oil, 240 Volt

1шт.

Includes Refs. 22 & 23

1шт.

22

J906389

HEATING ELEMENT

1шт.

23

J905114

ELECTRIC CABLE

1829 MM (72 IN)

1шт.

24

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.
