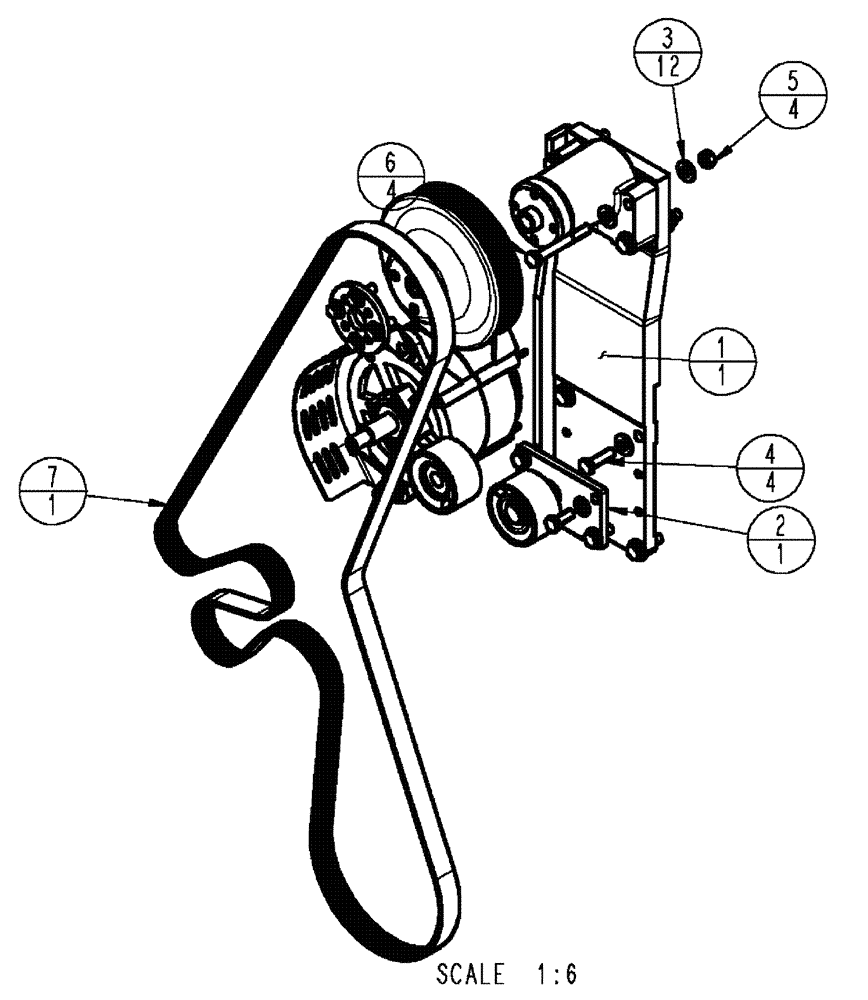

Запчасти Case IH TITAN 3020 (02-035) - FAN DRIVE LIFT, GROUP (01) - ENGINE

1

BN324094

SUPPORT

Fan Drive

1шт.

2

BN325124

SEE FIG. 02-035

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

4

87315279

BOLT,Hex, M10 x 35mm, Cl 10.9

4шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

6

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

7

87271895

V-BELT,28.00 mm W x 2870.00 mm L

Fan

1шт.
