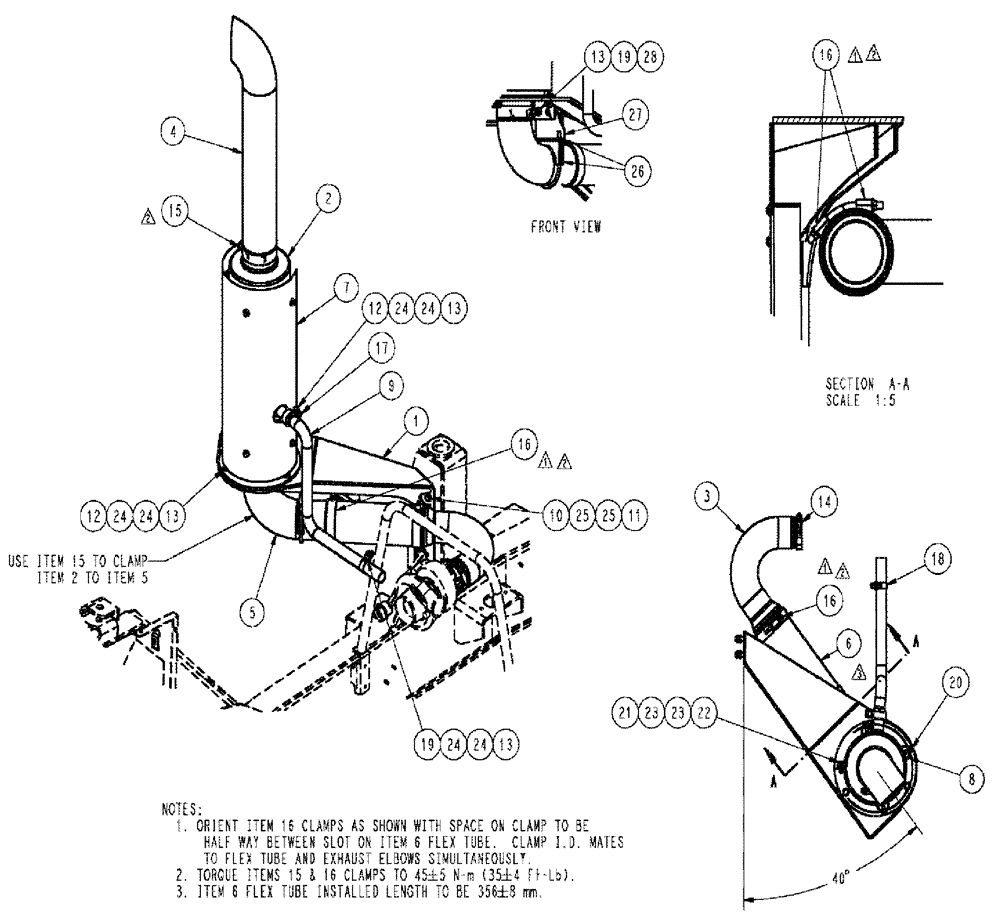

Запчасти Case IH TITAN 3020 (02-016) - AIR EXHAUST GROUP (01) - ENGINE

1

87266036

MOUNTING PLATE

Exhaust

1шт.

2

BN313594

MUFFLER

BODY, 18-2450 CFM, SEE FIG. 02-017

1шт.

3

87266694

ELBOW

EXHAUST, TURBO

1шт.

4

86986686

EXHAUST SYSTEM PIPE

Stack, 36" Curved

1шт.

5

87268064

ELBOW

90º 5" OD

1шт.

6

413677A1

TUBE

Flexible, Exhaust

1шт.

7

BN313588

SHIELD

HEAT, MUFFLER

1шт.

8

BN313590

CLAMP

HEAT SHIELD

2шт.

9

87266037

TUBE,42 mm DIA

PRE-CLEANER

1шт.

10

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

6шт.

11

100038

NUT,M12 x 1.75, Cl 8

6шт.

12

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

7шт.

14

A170807

CLAMP,102mm ID

4" T-Bolt

1шт.

15

BN313592

CLAMP

BENT BOLT, 5"

2шт.

16

413678A1

CLAMP,129.03mm ID

Assembly, Flexible Exhaust

2шт.

17

334985A1

CLAMP

EXHAUST

1шт.

18

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

19

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

3шт.

20

BN313589

BOLT

HEAT SHIELD

6шт.

21

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

22

86528579

NUT,M8 x 1.25

2шт.

23

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

24

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

14шт.

25

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

12шт.

26

BN306386

CLAMP,129.5mm ID

MUFFLER 5’’, PLATED YELLOW ZINK

1шт.

27

87268766

BRACKET

Exhaust Elbow, 3 Wheel

1шт.
