(02-011) - FUEL TANK ASSEMBLY

Запчасти Case IH TITAN 3020 (02-011) - FUEL TANK ASSEMBLY (01) - ENGINE

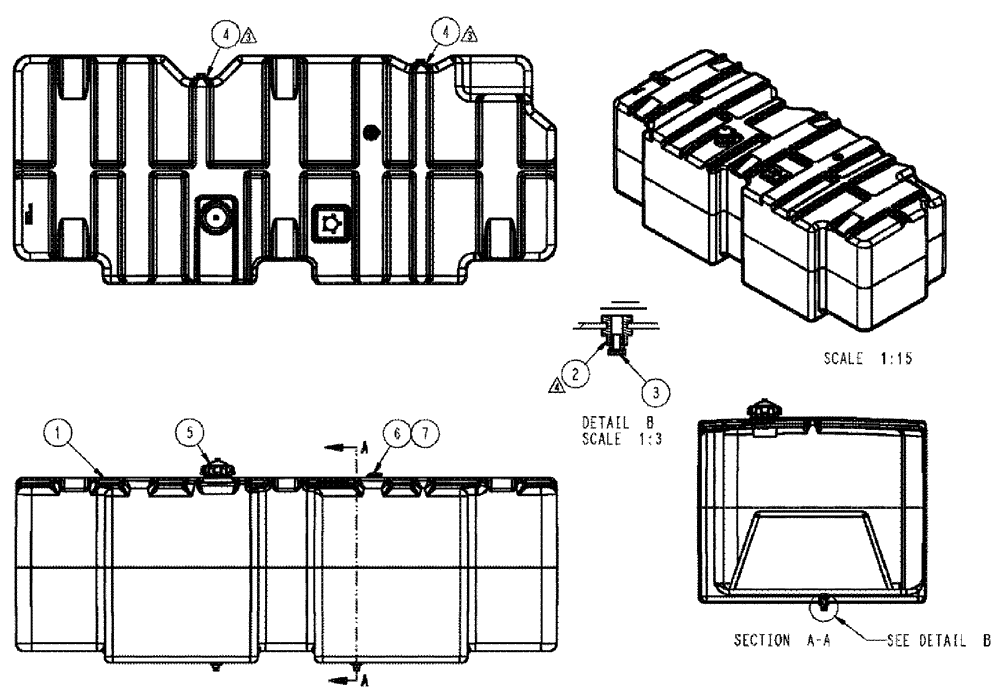

Схема запчастей Case IH TITAN 3020 - (02-011) - FUEL TANK ASSEMBLY (01) - ENGINE
6
7
5
3
1
4
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87269155

TANK

Assembly, 150 Gallon Fuel With Parts

1шт.

2

BN306082

FITTING

ASSY, SHORT TANK

2шт.

3

86568834

PLUG,1/4" - 18 NPT

2шт.

4

344475A1

FITTING

fuel tank 1/2" NPTF

2шт.

5

BN324706

CAP

FUEL, NON VENT "DIESEL"

1шт.

6

86999947

GROMMET,25mm ID x 33mm OD, 46mm Shoulder

fuel tank roll over valve

1шт.

7

275800A1

VALVE STEM

ROLL OVER, FUEL

1шт.
