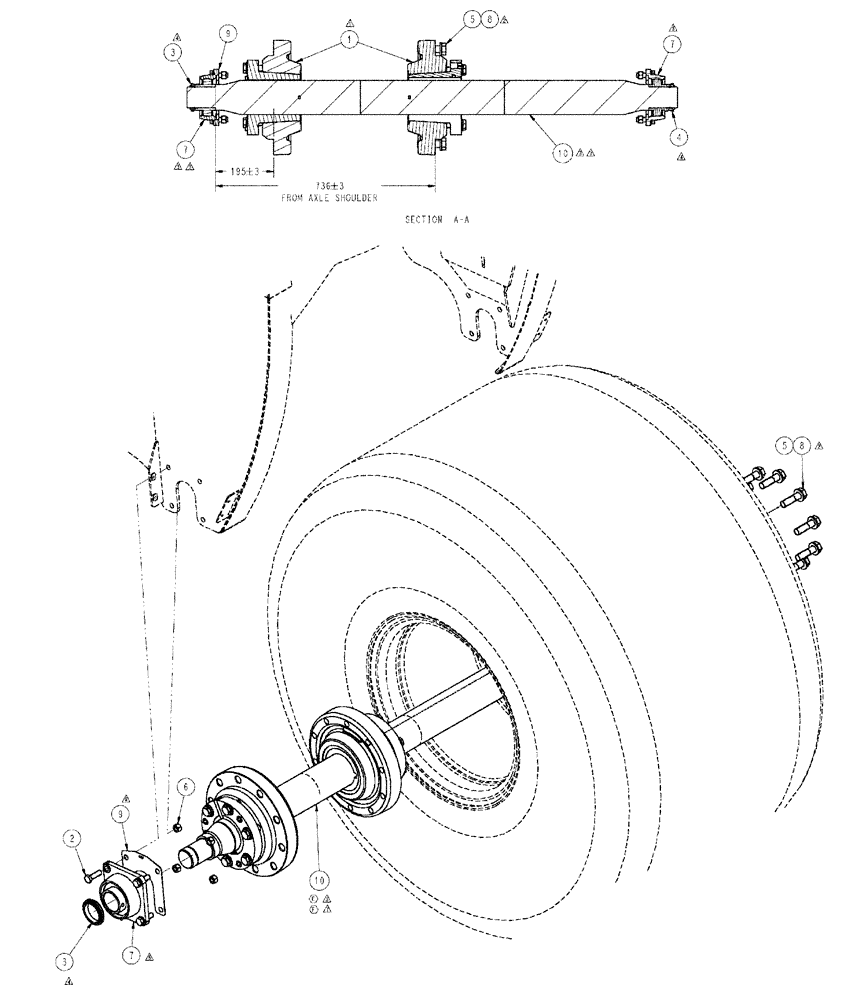

Запчасти Case IH TITAN 3020 (04-001) - FRONT AXLE GROUP Frame & Suspension

1

87552447

HUB

115 mm Axle

2шт.

See Fig. 04-002

1шт.

2

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

8шт.

3

87268062

BEARING LOCK NUT,79.4 mm ID x 84.1 mm OD x 15.88 mm

Bearing, LH Thread

1шт.

4

87268061

BEARING LOCK NUT,79.4 mm ID x 84.1 mm OD x 15.88 mm

Bearing, RH Thread

1шт.

5

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

10шт.

6

832-46416

NUT,M16 x 2, Cl 8

8шт.

7

86986542

FLANGED BEARING

70 mm, 4 Bolt Flange

2шт.

8

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

10шт.

9

87268063

SHIM

Front Axle Bearing

6шт.

10

87396362

SHAFT

FRONT AXLE

1шт.
