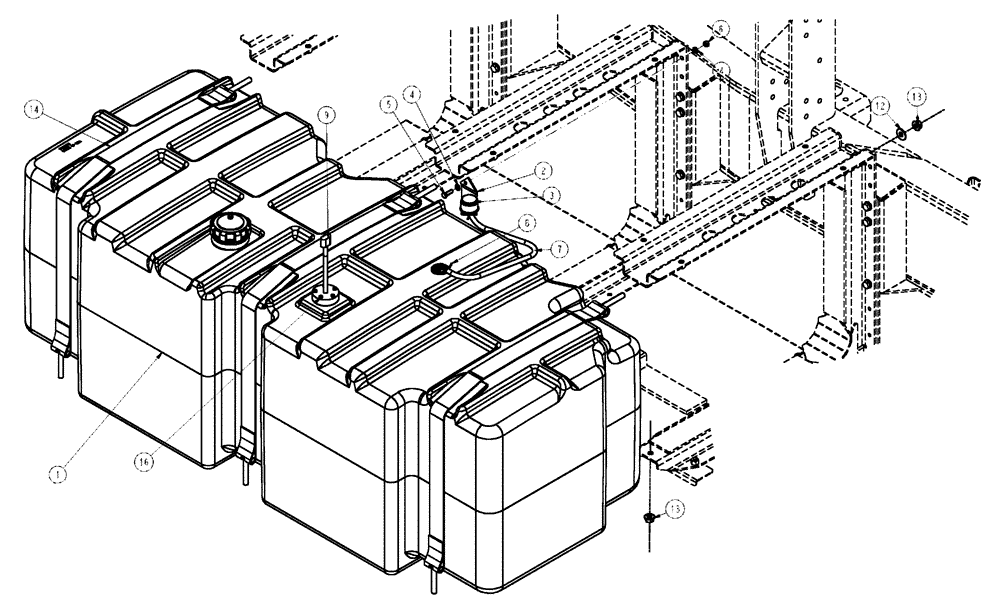

Запчасти Case IH TITAN 3020 (02-010) - FUEL TANK GROUP (01) - ENGINE

1

87269155

TANK

Assembly, 150 Gallon Fuel With Parts

1шт.

2

87269750

BRACKET, SUPPORTING

MOUNT, FUEL TANK VENT

1шт.

3

86999949

FUEL FILTER

FUEL TANK VENT

1шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

6

86528579

NUT,M8 x 1.25

1шт.

7

87269744

FUEL HOSE

Fuel, 1/4" id, Bulk

1шт.

Cut 22" from bulk roll

1шт.

8

86637701

HOSE CLAMP,12.45mm - 12.95mm

2шт.

9

84176270

SENSOR

fuel tank level, Start Year: 01-JUN-09

1шт.

9

86986554

SENSOR

FUEL TANK LEVEL, Years: -01-JUN-09

1шт.

9a

87268404

GASKET,2.4mm Thk

FUEL SENSOR

1шт.

Service Parts For Ref. 9

1шт.

12

87310599

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

0.5 x 1.25 x 0.083 CST DOR

3шт.

13

87343935

FLANGE NUT

Flange, 1/2-13, GR G, DOR

6шт.

14

BN2395008-002

STRAP

Assembly, Fuel Tank

3шт.

16

87270794

BOLT,Hex, M5 x 30mm, SST

M5 x 30, SS

5шт.
