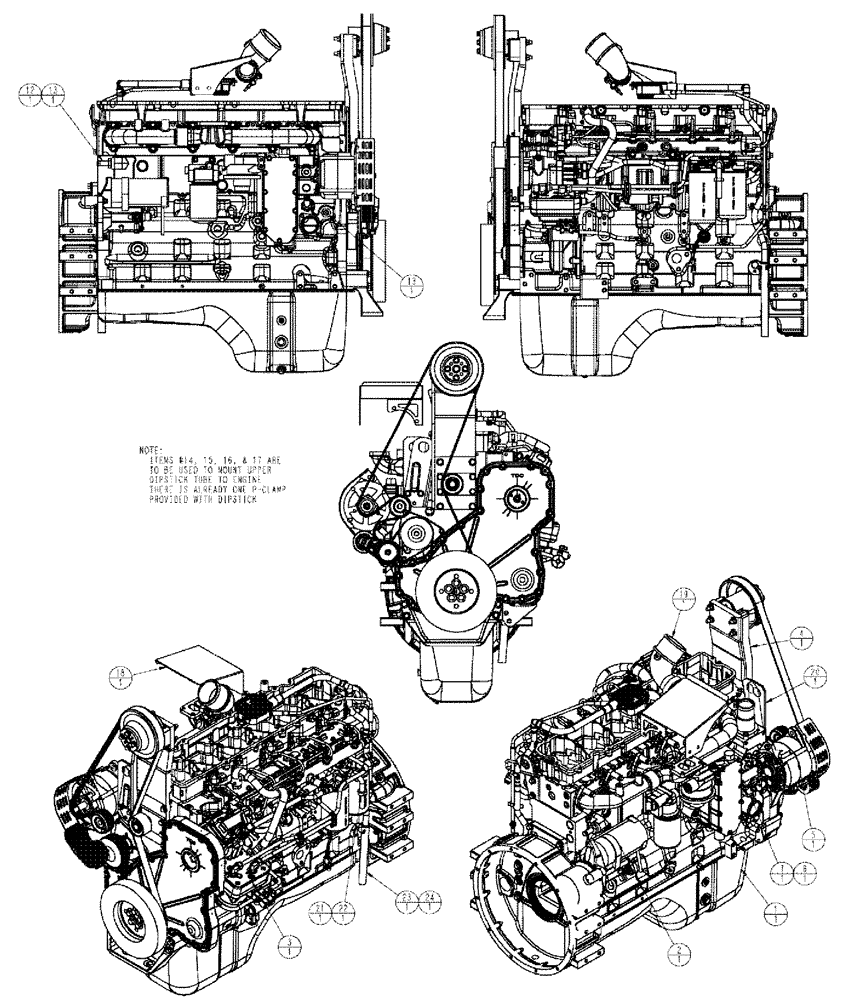

Запчасти Case IH TITAN 3020 (02-001) - ENGINE GROUP, TITAN 3020 (01) - ENGINE

1

87495312

ENGINE

9L 305 HP T3, Start Year: 01-AUG-08

1шт.

1

87461050

9L 305 HP T3, Years: -01-AUG-08

1шт.

2

BN314866

300 CDC

1шт.

See Fig. 02-032

1шт.

3

87272775

1шт.

See Fig. 02-006

1шт.

4

87272369

FAN DRIVE LIFT

1шт.

See Fig. 02-035

1шт.

5

NS

NOT SERVICED

Package, Engine Alternator, Start Year: 01-AUG-08

1шт.

See Fig. 02-034

1шт.

5

BN324041

ENGINE, Years: -01-AUG-08

1шт.

See Fig. 02-033

1шт.

6

BN317988

FITTING

12MP 12FP

1шт.

7

217-145

ELBOW,45 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

1шт.

8

PL

PROCURE LOCALLY

1 QT, DSL ENG, CS#1

24шт.

12

BN51937

ELBOW

FT, 90D, 3/4 NPTF, STL STRT

1шт.

13

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

2шт.

14

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

15

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

16

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

17

9991588

NUT,M8 x 1.25, Cl 8

1шт.

18

87266633

SHIELD

TURBO HEAT

1шт.

19

87271501

3.5 TURBO ELBOW

1шт.

See Fig. 02-018

1шт.

20

87271498

1шт.

21

BN53591

FITTING

CONNECTOR, STR THD, 1/2 37FL ORB 5/8

1шт.

22

87535395

FITTING

10GS-10FJX90S, 90º Elbow

1шт.

23

87537782

HOSE,19.05 mm ID x 250.00 mm

Crankcase Breather

1шт.

24

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.
