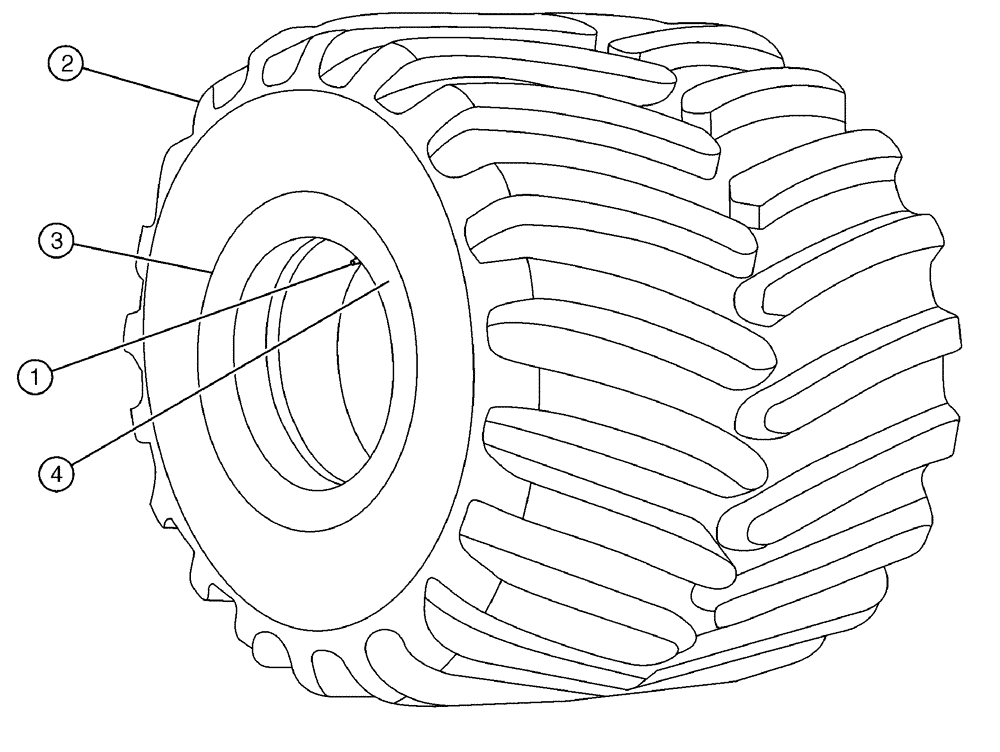

Запчасти Case IH TITAN 3020 (05-006[01]) - FRONT TIRE GROUP, 66, FS Tires

0

BN324417

MTD FRONT, 66 RADIAL FS

1шт.

1

362766A1

VALVE STEM

TR-618A

1шт.

2

BN323372

1050/50R25, FS

1шт.

3

BN322353

WHEEL

front

1шт.

3a

BN2396615

FLANGE

FL025T

1шт.

Service Parts For Ref. 3

1шт.

3b

BN2297235

LOCKING RING

LR25T

1шт.

Service Parts For Ref. 3

1шт.

3c

BN2391858

O-RING

OR25T Black

1шт.

Service Parts For Ref. 3

1шт.

4

333089A1

DECAL

torque wheel nuts

1шт.

4a

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

10шт.

Associated Part of Decal, Torque Wheel Nuts, P/N 333089A1

1шт.

4b

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

10шт.

Associated Part of Decal, Torque Wheel Nuts, P/N 333089A1

1шт.
