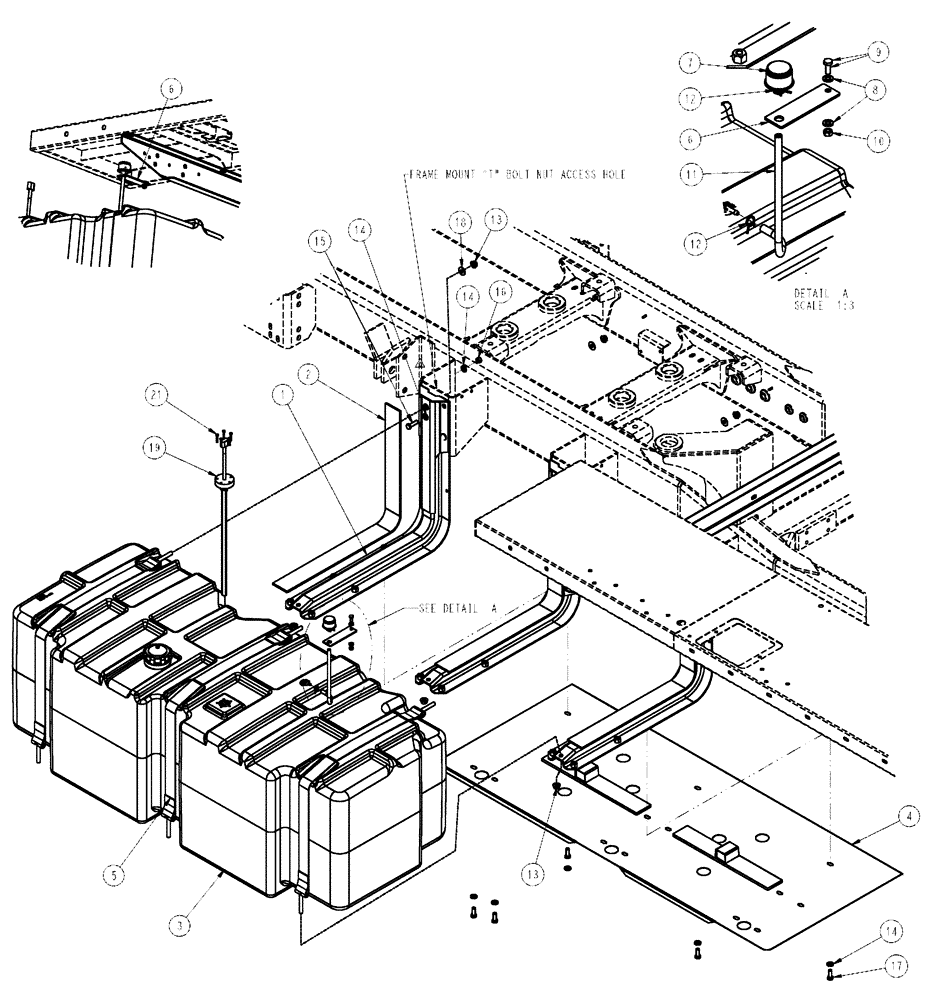

Запчасти Case IH FLX4510 (02-008) - FUEL TANK GROUP, 150 GALLON (01) - ENGINE

1

87267439

BRACKET, SUPPORTING

Fuel Tank

3шт.

2

344476A1

PAD

Fuel Tank

3шт.

3

87269155

TANK

Assembly, 150 Gallon Fuel With Parts

1шт.

4

87266379

PLATE

Fuel Tank Skid

1шт.

5

BN2395008-002

STRAP

Assembly, Fuel Tank

3шт.

6

BN324416

BRACKET

Fuel Tank Vent

1шт.

7

86999949

FUEL FILTER

Fuel Tank Vent

1шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

10

86528579

NUT,M8 x 1.25

1шт.

11

BN322382

FUEL HOSE,6.40 mm ID x 304.80 mm, SAE 30R6, SAE 30R7, SAE J30

Fuel Tank Vent, Poly

1шт.

12

86637701

HOSE CLAMP,12.45mm - 12.95mm

2шт.

13

BN2395003-005

NUT

Fuel Tank Strap

3шт.

14

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

32шт.

15

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

12шт.

16

100038

NUT,M12 x 1.75, Cl 8

12шт.

17

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

5шт.

18

BN300407

FLANGE NUT

Flg, 1/2"-13, G8

3шт.

19

84176270

SENSOR

fuel tank level, Start Year: 01-JUN-09

1шт.

19

86986554

SENSOR

Fuel Tank Level, Years: -01-JUN-09

1шт.

87268404

GASKET,2.4mm Thk

Fuel Sensor

1шт.

Service Parts For Ref. 19

1шт.

21

87270794

BOLT,Hex, M5 x 30mm, SST

M5 x 30, SS

5шт.
